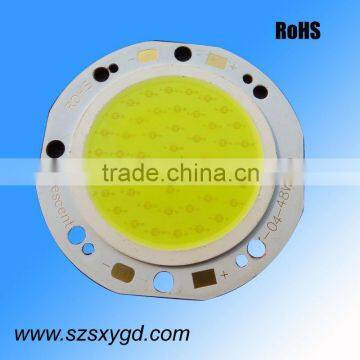

48W High Power COB LED/LED Array from Shenzhen Crescent
Negotiable
/ Piece
500 Pieces(Min.Order)
- 3 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
3W High Power LED Light Source/Cool White/High Brightness
-
5W High Power LED COB Epistar Chip White 6000-6500K Shenzhen Factory Wholesale
-
10W High Power LED Red 615-630nm with RoHS 3 Years Warranty
-
Shenzhen Crescent 5W High Power LED White 6000-6500K Epistar Chip Perfect for LED Downlight
-
COB LED Matrix 30W LED Shenzhen Manufacturer Direct Sale
-
15W Yellow COB leds led bulb light addressable rgb led strip
Product Details
| Model Number | XY-04-48W | Chip Material | InGaN | |
| Emitting Color | Cool White | Luminous Flux(lm) | 3200-3400 | |
| Power | Other, 48W | Power Dissipation | 56 | |
| Color Temperature | 6000-6500 | Operating Temperature(℃) | -30, +60 | |
| Storage Temperature(℃) | -30, +60 | Place of Origin | Guangdong, China | |
| Brand Name | Crescent | Certification | CE |
Product Description
Specifications
48W COB LED Light Source1.3 years warranty
2.Long lasting
3.Manufacturer direct sale
4.Competitive price
1.Dimensions of 48W COB LED Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
2.Specifications of 48W COB LED Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
| Part Number | Emitting color | Forward Current (mA) | Power Dissipation (W) | Wavelength(nm) CCT(K) | Driver Voltage (V) | Luninmous Flux (Lm) |
| XY-04-48W | Cool White | 700 | 56 | 6000-6500 | 76-80 | 3200-3400 |
| XY-04-48W | Natural White | 700 | 56 | 4000-4200 | 76-80 | 3200-3400 |
| XY-04-48W | Warm White | 700 | 56 | 3000-3100 | 76-80 | 3200-3400 |
| Parameter | Symbol | Rating | Units |
| Power Dissipation | PD | 56 | W |
| Continuous Forward Current | IF | 700 | mA |
| Peak Forward Current | IF(Peak) | 1400 | mA |
| Viewing Angle | 2ø1/2 | 120 | ° |
| Reverse Volage | VR | 240 | V |
| Operating Temperature Range | TOPR | -30°C to +60°C | |
| Storage Temprature Range | TSTG | -30°C to +60°C | |
| Manual Soldering Temperature | TSOL | 350°C±20°C for 3 Seconds | |
| Soldering Temerature on Heat Plates | TSOL | 190°C±10°C for 20 Seconds | |
| ESD Sensitivity | ESD | 2000V HBM | |
3. High Quality Chips (Optional) of 48W COB LED Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
4. Application of 48W COB LED Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
5.Package of 48W COB LED Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
6.Shenzhen Crescent Optoelectronic Co.,Ltd
