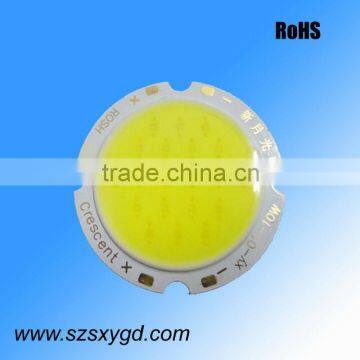

10W High Power Light Emitting Diode for LED Lights
Negotiable
/ Piece
500 Pieces(Min.Order)
- 2 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
10W High Power LED/COB LED/Chip On Board LED
-
5W High Power LED Emitter / COB LED / Chip On Board LED
-
30W High Power LED/COB LED/LED Emitter/High Brightness
-
10W High Power LED/COB LED/Energy Saving LED from Shenzhen Crescent
-
5W High Power LED/COB LED/Chip On Board LED
-
3W High Power LED Epistar Chip COB Made in P.R.C
Product Details
| Place of Origin | Guangdong, China | Brand Name | Crescent | |
| Model Number | XY-C10QWCJ-B |
Product Description
Specifications
1.Qualified chips (Epsitar, Bridgelux etc.)2.50,000 hours operating life
3.3 years' warranty
4.Factory direct sale
Dimensions of 10W High Power LED for LED Lights from Shenzhen Crescent Optoelectronic Co.,Ltd
Specifications of 10W High Power LED for LED Lights from Shenzhen Crescent Optoelectronic Co.,Ltd
| Part No. | Emitting Color | Forward Current (mA) | Power Dissipation (W) | Wavelength(nm) CCT(K) | Driver Voltage (V) | Luminous Flux (Lm) |
| XY-C10QWCJ-B | White | 350 | 11.2 | 2500-10000 | 32-34 | 700-800 |
| XY-C10BRFJ-B | Red | 350 | 7.7 | 615-630 | 22-24 | 400-450 |
| XY-C10BYFJ-B | Yellow | 350 | 7.7 | 585-595 | 22-24 | 400-450 |
| XY-C10OBJ-B | Blue | 350 | 11.2 | 460-470 | 32-34 | 150-200 |
| XY-C10OGFJ-B | Green | 350 | 11.2 | 515-530 | 32-34 | 500-600 |
Characteristic parameters for indoor use (At TA=25°C)
| Parameter | Symbol | Ratings | Units |
| Power Dissipation | PD | 11.2 | W |
| Continuous Forward Current | IF | 350 | mA |
| Peak Forward Current | IF(Peak) | 700 | mA |
| LED Junction Temperature | TJ | 125 | °C |
| Reverse Voltage | VR | 50 | V |
| Operating Temperature Range | TOPR | -30°C To +60°C | |
| Storage Temperature Range | TSTG | -30°C To +60°C | |
| Manual Soldering Temperature | TSOL | 350°C± 20°C For 3 Seconds | |
| Soldering on a heat plate | TSOL | 190°C± 10°C For 20Seconds | |
| ESD Sensitivity | ESD | 2,000V HBM | |
High Quality Chips (Opitional) of 10W High Power LED for LED Lights from Shenzhen Crescent Optoelectronic Co.,Ltd
Applications of 10W High Power LED for LED Lights from Shenzhen Crescent Optoelectronic Co.,Ltd
Package of 10W High Power LED for LED Lights from Shenzhen Crescent Optoelectronic Co.,Ltd
