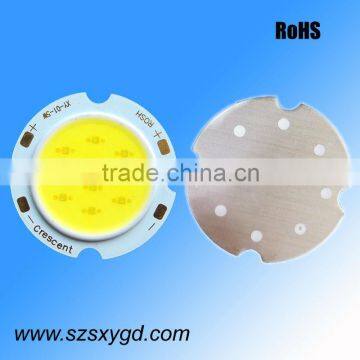

5W High Power LED/COB LED/Chip On Board LED
USD $0.31 - $0.5
/ Piece
500 Pieces(Min.Order)
- 3 Piece / Pieces per Month
- Shenzhen
- Credit Card
You May Like
-
3W High Power LED Epistar Chip COB Made in P.R.C
-
Shenzhn Crescent 30W High Power LED COB Warm White 2800-3500K RoHS Compliant
-
48w Cob endoscopy led light source
-
bulk corn on the 5w cob
-
Shenzhen LED led chip price 1W 3W high power 2 years warranty
-
factory direct sale high power led bridgelux chip 1W 3W LED
Product Details
| Model Number | XY-C05QWCJ-B | Chip Material | InGaN | |
| Emitting Color | Other, White | Luminous Intensity | 350-500cmd | |
| Luminous Flux(lm) | 300-350 | Optical Attenuation(%) | 0.2 | |
| Power | 5W | Power Dissipation | 6.3 | |
| Color Rendering Index(Ra) | 75 | Color Temperature | 2,500-10,000K | |
| Operating Temperature(℃) | -35, +65 | Storage Temperature(℃) | -35, +80 | |
| Place of Origin | Guangdong, China | Brand Name | Crescent |
Product Description
Specifications
1) Epistar chip2) RoHS compliant and Pb free
3) 50,000H operating life
4) 3 years warranty
1.Dimensions of 5W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
2.Specifications of 5W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
| Part No. | Emitting Color | Forward Current (mA) | Power Dissipation (W) | Wavelength(nm) CCT(K) | Driver Voltage (V) | Luminous Flux (Lm) |
| XY-C05QWCJ-B | White | 350 | 6.3 | 2500-10000 | 16-18 | 300-350 |
| XY-C05BRFJ-B | Red | 350 | 3.5 | 615-630 | 10-12 | 200-250 |
| XY-C05BYFJ-B | Yellow | 350 | 3.5 | 585-595 | 10-12 | 200-250 |
| XY-C05OBJ-B | Blue | 350 | 6.3 | 460-470 | 16-18 | 70-80 |
| XY-C05OGFJ-B | Green | 350 | 6.3 | 515-530 | 16-18 | 250-300 |
Absolute Maximum Ratings At Ta=25°C
| Parameter | Symbol | Ratings | Units |
| Power Dissipation | PD | 5.6 | W |
| Continuous Forward Current | IF | 350 | mA |
| Peak Forward Current | IF(Peak) | 700 | mA |
| LED Junction Temperature | TJ | 125 | °C |
| Reverse Voltage | VR | 25 | V |
| Operating Temperature Range | TOPR | -30°C To +60°C | |
| Storage Temperature Range | TSTG | -30°C To +60°C | |
| Manual Soldering Temperature | TSOL | 350°C± 20°C For 3 Seconds | |
| Soldering on a heat plate | TSOL | 190°C± 10°C For 20Seconds | |
| ESD Sensitivity | ESD | 2000V HBM | |
3.High Quality Chips (Optional) of 5W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
4.Applications of 5W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
5. Package of 5W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
6. Shenzhen Crescent Optoelectronic Co.,Ltd
