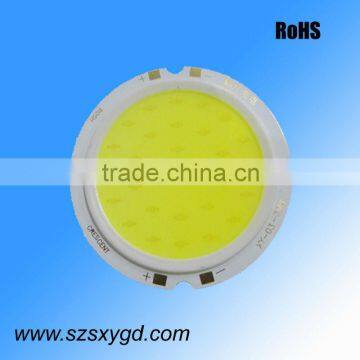

30W High Power LED/COB LED/LED Emitter/High Brightness
Negotiable
/ Piece
500 Pieces(Min.Order)
- Shenzhen
- Credit Card
You May Like
Product Details
| Model Number | XY-C30QWCJ-B | Chip Material | InGaN | |
| Emitting Color | Other, White | Luminous Flux(lm) | 1,800-2,000 | |
| Optical Attenuation(%) | 0.2 | Power | Other, 30W | |
| Power Dissipation | 31.7 | Color Rendering Index(Ra) | 75 | |
| Color Temperature | 2,500-10,000 | Operating Temperature(℃) | -35, +65 | |
| Storage Temperature(℃) | -35, +80 | Place of Origin | Guangdong, China | |
| Brand Name | Crescent |
Product Description
Specifications
1) Epistar chip2) RoHS compliant
3) >50,000H lifespan
4) 3 years warranty
1.Dimensions of 30W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
2.Specifications of 30W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
| Parameter | Symbol | Ratings | Units |
| Power Dissipation | PD | 30 | W |
| Continuous Forward Current | IF | 1,050 | mA |
| Peak Forward Current | IF(Peak) | 2,100 | mA |
| LED Junction Temperature | TJ | 125 | °C |
| Reverse Voltage | VR | 150 | V |
| Operating Temperature Range | TOPR | -30°C To +60°C | |
| Storage Temperature Range | TSTG | -30°C To +60°C | |
| Manual Soldering Temperature | TSOL | 350°C± 20°C For 3 Seconds | |
| Soldering on a heat plate | TSOL | 190°C± 10°C For 20Seconds | |
| ESD Sensitivity | ESD | 2,000V HBM | |
Electrical/Optical Characteristics (At TA=25°C)
| Parameter | Symbol | Conditions | Min. | Avg. | Max. | Unit |
| Luminous Intensity | Φ | IF=350mA | 2,700 | 3,000 | lm | |
| Color Temperature | CCT | IF=350mA | 6,000 | 6,500 | K | |
| Forward Voltage | VF | IF=350mA | 32 | 34 | V | |
| Color Rendering index | Ra | IF=350mA | 70 | |||
| Thermal Resistance Junction To Board | RΘJ-B | IF=350mA | 10 | °C/W | ||
| 50% Power Angle | 2θ½ | IF=350mA | 120 | deg | ||
| Reverse Current | IR | VR=35V | 5 | μA |
3.High Quality Chips (Optional) of 30W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
4.Applications of 30W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
5. Package of 30W High Power LED Emitter/Light Source from Shenzhen Crescent Optoelectronic Co.,Ltd
6. Shenzhen Crescent Optoelectronic Co.,Ltd
