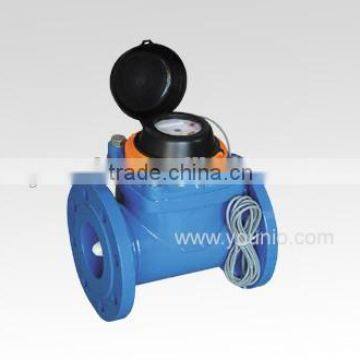

DN125 WOLTMAN TYPE WATER METER

Features

Dry-dial, magnetic drive

Vacuum sealed register, frost resistant, keeps clear reading for long time

Removable measuring unit, easy installation and maintenance

Measuring high flowrate with low head loss

Remote transmission device can be added upon request

Many kinds of sensors, such as Reed Switch, Hall and Weagand can be supplied upon request

Pulse output may be 10l/pulse,100l/pulse,1000l/pulse

The meters conform to ISO4064 Standard Class B

The meter are available with LCD reading register

Working condition

Water temperature≤50°c

(Hot water meter≤90°c)3

Water pressure≤1MPa

(PN: 1.6MPa/16bar)

Accuracy

From minimum flow-rate (qmin) inclusive, to transitional flow-rate (qt), exclusive:±5%

From transitional flow-rate (qt) inclusive, to overload flow-rate (qs),exclusive:±2%

(Hot water meter:±3%)

Technical data

Overall dimensions and weight

IN STANDARD EXPORTED CARTONS

CAN BE PACKED IN PALLETS

Cheapest prices than any other water meter companies in China ;

Our goal is to help your business buy what money can not ;

Choice us is your smart,sensible and wise choice;

OEM Service can be offered.

27/9/2011, The Water Meter Production Base of Zhejiang Younio ( Zhejiang Younio Water Supply Equipment Co., Ltd) standed alone and set up a wholly-owned subsidiary - Wenling Younio.(Wenling Younio Water Meter Co.,Ltd), whose registered capital is RMB30 million.

08/12/2011,Zhejiang Younio signed an official agreement with Jiangxi Sanchuan which state that Jiangxi Sanchuan will be controlling shareholder and bring Wenling Younio going public.

01/01/2012,Wenling Younio start to run And we are planning to be the biggest water meter export base in China within next three years.

 Wenling Younio. covers an area of more than 5000 square meters with a staff of more than 150,owning design and R&D center,accessories production center, whole machine production center,inspection and testing center.We are now capable of producing about 2 million pieces water meters annual.We have successively passed the certificate of ISO9001:2008 Quality System Certification, the certificate of ISO14001:2004 Environmental Management System Certification and the certificate of GB/T 28001:2001 Occupational health and safety management system certification.With a wide variety and a complete range of specifications.Our products are exported to many countries in the world such as Eastern Europe,South America,Africa and the Middle East,etc.Exports accounted for more than 85%.
