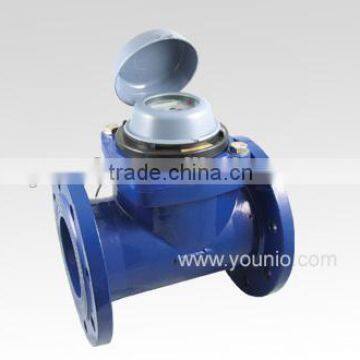

WATER METER (LXLG-50E ~500E), WITH METAL /PLASTIC COVER
- NINGBO
- T/T
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YOUNIO | |
| Model Number | LXLG-50E3~500E3 |
Product Description
Specifications
Horizontal Woltman type water meterWITH METAL COVER OR PLASTIC COVER
Features
-Magnetic drive, lower transmission resistance
-Dry dial register ensures clear reading
-The body is made of cast ironcoated with epoxy treatment
-The mechanism can be removable from the body for checking, maintain and replacing and the body don’t need to be dismantled from the pipe.
-Low pressure loss, long working life
-Inter-exchangeable parts.
Standard Compliance
-ISO 4064 Class B Standard
Dimensions and Weights
Size | Length L | Height H | Outer Diameter D1 | Bolt Circle Diameter D2 | Connecting Bolt | Weight |
mm | n-Md | Kg | ||||
50 | 200 | 247 | 165 | 125 | 4-M16 | 8 |
65 | 200 | 260 | 185 | 145 | 4-M16 | 13 |
80 | 225 | 265 | 200 | 160 | 8-M16 | 15 |
100 | 250 | 272 | 220 | 180 | 8-M16 | 19 |
125 | 250 | 295 | 250 | 210 | 8-M16 | 23 |
150 | 300 | 302 | 285 | 240 | 8-M20 | 30 |
200 | 350 | 359 | 340 | 295 | 8-M20(1.0MPa) | 42 |
12-M20(1.6MPa) | 41.5 | |||||
Main technical data
Size | CLASS | Maximum | Nominal | Transitional | Minimum | Minimum | Maximum |
m3/h | m3 | ||||||
50 | B | 30 | 15 | 3.0 | 0.45 | 0.001 | 999999 |
65 | B | 50 | 25 | 5.0 | 0.75 | 0.001 | 999999 |
80 | B | 80 | 40 | 8.0 | 1.2 | 0.001 | 999999 |
100 | B | 120 | 60 | 12 | 1.8 | 0.001 | 999999 |
125 | B | 200 | 100 | 20 | 3.0 | 0.001 | 999999 |
150 | B | 300 | 150 | 30 | 4.5 | 0.01 | 9999999 |
200 | B | 500 | 250 | 50 | 7.5 | 0.01 | 9999999 |
