Home > Products > Bulk flow meter > DN 50-300 Irrigation water meter

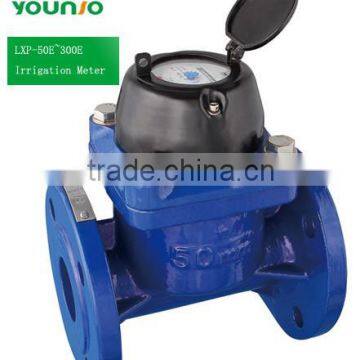

DN 50-300 Irrigation water meter
USD $58 - $58
/ Piece
10 Pieces(Min.Order)
- ningbo port
- T/T D/P D/A
You May Like
-
WATER METER (LXLG-50E ~500E), WITH METAL /PLASTIC COVER
-
WATER METER (LXP-50E ~ 300E)
-
Horizontal vane wheel, dry-dial cold (hot) water meter
-
Eurpoean Market WP-Dynamic Turbine Water Meter/ R100
-
Removable Horizontal Dry Type woltman ductive iron water meter
-
Removable Horizontal Dry Type woltman cast iron water meter
Product Details
| Place of Origin | Zhejiang, China | Brand Name | Younio | |
| Model Number | LXP-50E~300E |
Product Description
Specifications
dry type,vacuum sealed register,frost resistant,magnetic driveAnti-friction bearing type, used for low quality water
BULK FLOW METER--IRRIGATION WATER METER(LXP-50E~300E)
Features:
Fit for big water flow
Stable and high accuracy
Cast iron body
Low pressure loss
Long working life
For cold water
Type:honrizontal
ISO 4064 :1993 Class B ;
Working condition:
Water temperature 50°c
Water pressure≤1MPa
(PN:1.6MPa/16bar)
ΔP≤0.03MPa(Class B)
Accuracy:
From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%;
From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%
Technical data:
| Nominal size DN(mm) | Class of measurement | Overload flow-rate qs(m3/h) | Permanent flow-rate qp(m3/h) | Transitional flow-rate qt(m3/h) | Minimum flow-rate qmin(m3/h) | Minimumreading Min(m3) | Maximum reading Max(m3) |
| 65 | A | 50 | 25 | 7.5 | 6 | 0.005 | 9999999 |
Overall dimensions and weight
| Type | size(mm) | Length (mm) L | Height (mm) H | Connecting flange | ||
| Outer diameter of flange D(mm) | The center diameter of connecting bolt D1(mm) | Connecting bolt(Pcs) | ||||
| LXP-65E2 | 65 | 200 | 262 | 185 | 145 | 4*M16 |
