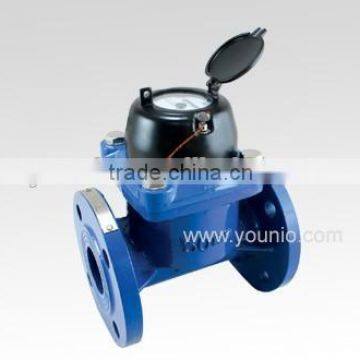

WATER METER (LXP-50E ~ 300E)
- 50000 Piece / Pieces per Month
- NINGBO
- T/T
You May Like
-
Horizontal vane wheel, dry-dial cold (hot) water meter
-
Eurpoean Market WP-Dynamic Turbine Water Meter/ R100
-
Removable Horizontal Dry Type woltman ductive iron water meter
-
Removable Horizontal Dry Type woltman cast iron water meter
-
WP-Dynamic Turbine Water Meter/ R100
-
removable Woltman bass cover water meter
Product Details
| Place of Origin | Zhejiang, China | Brand Name | YOUNIO | |
| Model Number | LXP-50E-300E |
Product Description
Specifications
dry type,woltman meterLXP-50E~20E
Features:
Fit for big water flow
Stable and high accuracy
Cast iron body
Low pressure loss
Long working life
For cold water
Type:honrizontal
ISO 4064 :1993 Class B ;
Working condition:
Water temperature 50°c
Water pressure≤1MPa
(PN:1.6MPa/16bar)
ΔP≤0.03MPa(Class B)
Accuracy:
From minimum flow-rate(qmin/q1)inclusive, to transitional flow-rate(qt/q2),exclusive:±5%
From transitional flow-rate (qt/q2)inclusive,to overload flow-rate(qs/q4),exclusive::±2%
Main technical data
Size | CLASS | Maximum | Nominal | Transitional | Minimum | Minimum | Maximum |
m3/h | m3 | ||||||
50 | A | 30 | 15 | 4.5 | 1.2 | 0.005 | 999999 |
65 | A | 50 | 25 | 7.5 | 2.0 | 0.005 | 999999 |
80 | A | 80 | 40 | 12 | 3.2 | 0.005 | 999999 |
100 | A | 120 | 60 | 18 | 4.8 | 0.005 | 999999 |
125 | A | 200 | 100 | 30 | 8 | 0.005 | 999999 |
150 | A | 300 | 150 | 45 | 12 | 0.05 | 9999999 |
200 | A | 500 | 250 | 75 | 20 | 0.05 | 9999999 |
Dimensions and Weights
Size | Length L | Height H | Outer Diameter D1 | Bolt Circle Diameter D2 | Connecting Bolt | Weight |
mm | n-Md | Kg | ||||
50 | 200 | 247 | 165 | 125 | 4-M16 | 8 |
65 | 200 | 260 | 185 | 145 | 4-M16 | 13 |
80 | 225 | 265 | 200 | 160 | 8-M16 | 15 |
100 | 250 | 272 | 220 | 180 | 8-M16 | 19 |
125 | 250 | 295 | 250 | 210 | 8-M16 | 23 |
150 | 300 | 302 | 285 | 240 | 8-M20 | 30 |
200 | 350 | 359 | 340 | 295 | 8-M20(1.0MPa) | 42 |
12-M20(1.6MPa) | 41.5 | |||||
