350T Mining Compaction Equipment for Sale
- Shanghai&Tianjin&Qingdao
- T/T L/C D/P D/A
You May Like
-
Top Sell Anchor Drilling Rig
-
YUTONG Professional Energy Conservation Rotary Drilling Rig For Sale
-
YUTONG Professional And High Efficieny350(t.m) Construction Dynamic Compactor For Sale
-
YUTONG Professional And High Efficieny 450(t.m) Construction Dynamic Compactor For Sale
-
YUTONG Professional And High Efficieny 600(t.m) Construction Dynamic Compactor For Sale
-
YUTONG Professional And High Efficieny 800(t.m) Construction Dynamic Compactor For Sale
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | YUTONG | Model Number | YTQH350B | |
| Power(W) | 179 | Weight | 31.9 | |
| Dimension(L*W*H) | 7025X3360X3200 | Certification | CE&ISO | |
| Warranty | one year | After-sales Service Provided | Overseas service center available |
Product Description

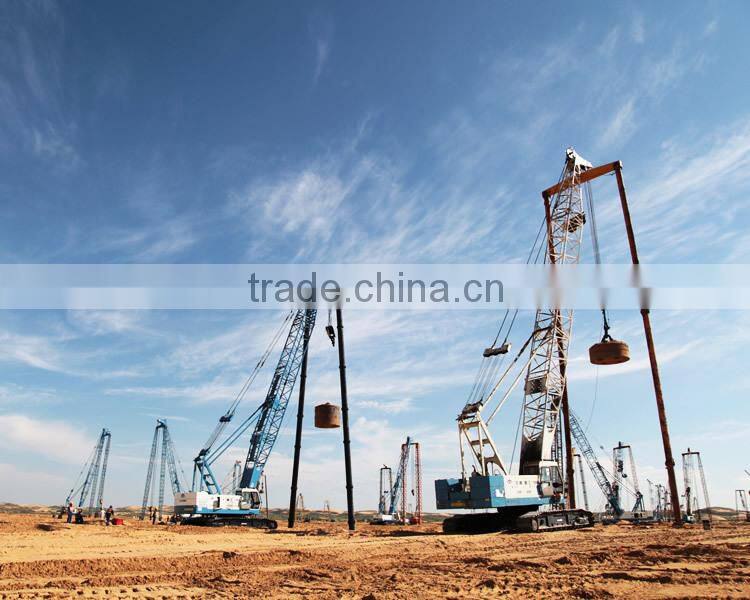

350T Mining compaction equipment for sale
According to the market demands and based on many years experience in the production of lifting, compacting and tamping equipments, Zhengzhou Yutong Heavy industries has developed YTQH series hydraulic dynamic compaction which is a special tamping equipment.
Performance characteristics of YTQH350B
Hydraulic drive system
Strong power system
Extension-type chassis mechanism
Multi-level security devices
Artistic outline and Comfortable ride
Major technical parameters of YTQH350B
Compacting Capacity Level (t.m) | 350 (Reaching 700 with portal frame) |
Allowed Pounder Weight (t) | 17 (Ground adsorption coefficient is 1.5) |
Wheel Tread (mm) | 5090 |
Chassis Width (mm) | 3360(4520) |
Track Shoe Width (mm) | 760 |
Boom Length (mm) | 19-25 |
Maximum Hoisting Height (mm) | 25.7 (The distance between the center of the pulley on the top and the ground) |
Operating Radius (m) | 6.3-14.5 |
Hoisting Pull (t) | 14 (First floor) |
Hoisting Speed (m/min) | 0-118 (Speed is fastest at the fourth floor) |
Gradeability (%) | 40% |
Travelling Speed (km/h) | 0-1.4 |
Rotary Speed (km/min) | 0-2.3 |
Working Angle (°) | 60-77 |
Engine Power (Kw) | 179 |
Rated Speed of Engine (r/min) | 2100 |
Weight of complete machine (t) | 58 |
Weight of Balance Weight (t) | 18.9 |
Weight of Main Unit (t) | 31.9 (Transportation State) |
Overall Dimension of Complete Vehicle(mm) | 7025X3360X3200 (Transportation State) |
Ground Pressure (MPa) | 0.065 |
Manufacturing
Yutong Heavy Industries has more than 60 kinds of products that can be classified to such 5 categories as shoveling and transporting machinery, environmental protection equipment and environmental protection engineering, piling machinery, special purpose vehicle, construction hoisting machinery, with its business covering the roads, railways, hydraulic engineering, architectural engineering, coal mines, petroleum engineering, civil engineering, environmental protection.
R&D Center
Located in Zhengzhou City, Henan Province and occupying a land of four hundred sixty-five thousand square meters, the company has about 3500 employees including more than 470 construction technicians. It has its own academician working station and provincial corporate technical center so it has a powerful technical innovation and new product development ability.
Welcome to consult us any question you have !
