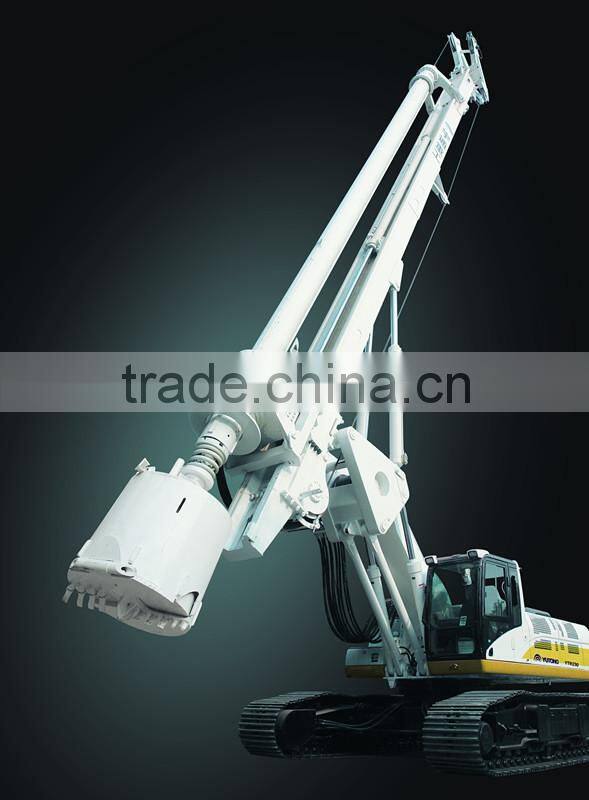

YUTONG 54m Drilling Rig
- TIANJIN/DALIAN/SHANGHAI/QINGDAO
- T/T L/C D/P D/A Credit Card
You May Like
-
Yutong 2000mm Drilling Rig
-
Yutong 0.75~ 0.80pa Impact Compactor
-
YUTONG Professional Rock(30m) Drill Hydraulic Drilling Rig For Sale
-
YUTONG Professional Rock(30m) Drill Rotary Table Drilling Rig For Sale
-
YUTONG Professional Energy Conservation Rotary Table Drilling Rig For Sale
-
Impact Compactor Roller
Product Details
| Place of Origin | Henan, China | Brand Name | YUTONG | |
| Model Number | YTR150D | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Technical content descriptions drill YTR150D | Parameter | |
Engine | Brand | Korean Doosan |
Model | DE08TIS | |
Power kW | 150 | |
Dynamic head | Maximum torque output kN·m | 120 |
Drilling speed r/min | 7-40 | |
Car under | Wheelbase mm | 4000 |
Shoe width mm | 700 | |
Width extension mm | 4100 | |
Main winch | Lifting force kN | 160 |
The wire rope diameter dla mm | 28 | |
Maximum lifting speed m/min | 70 | |
Location | Front location | |
Secondary winch | Lifting force kN | 62 |
The wire rope diameter dla mm | 16 | |
Maximum lifting speedm/min | 35 | |
Range mast tilt angle | Tilt angle | ±3.5° |
Forward tilt angle | 3.0° | |
Capacity Building | Diameter maximum stack mm | 1500 |
Maximum drilling depth m | 54 | |
Size of transportation | Length mm | 12980 |
Width mm | 3100 | |
Height mm | 3280 | |
Chassis | Model | DH225 |
Tractive force kN | 280 | |
Total weight | Total weight of working status t | 49 |
1. Apply the above Doosan DH225 car and the car itself produced below. The whole machine width is 3.1m when carrying. It can easily work in the normal transportation condition. The width extension of whole machine at work is 4.1m which has excellent stability work. Doosan Engine Model DE08TIS 120kW has excellent dynamic performance and economic fuel, which can provide strong dynamic source for the whole machine.
2. The rotary drill digging YTR150D our company has the main parts international purchasing mode. The control units of main equipment apply international famous brands like GRAF from Germany, Finland EPEPC, Doosan of Korea, Rexroth, which guarantees the performance and quality of the whole machine from the source.
3. Hydraulics:
The liquid pressure system continues to use the liquid pressure system Doosan applies back route guidance control high pressure.
The main oil path control amount applied advanced fluid conducting fluid supply according demands. At the same time the nominal power and control electrical power is added. To maximize engine power, oil route applies the sensitive control system to advanced international cargo, realizing that the power output of the pump correspond best with loading status of all jobs;
The control applies the control guide, the guide of liquid pressure ratio operation, efficient, energy-saving and accurate control;
The exclusive radiator system can adjust the fan speed depending on the status of work to ensure the thermal balance of the whole machine;
Pressure liquid pump, the motor of liquid pressure valve and liquid pressure tube connector fully apply international famous brands performing high reliabilities system.
4. Electrical System:
Hardware electrical system applies the 3G CANbus controller EPEC EPEC Oy imported from Finland and the screen GRAF_ITE GRAF-SYTECO of Germany; electricity system software can automatically detect and control the mast adjustment, the depth of drilled hole, positioning automatic return, automatic lifting mast, chassis control, auxiliary control and display of parameters impact the job status panel between human and machine. The operation of the whole machine is easy, flexible, reliable, accurate, safe and comfortable.
5. The mast applies steel structure shaped box, the special inner structure ensures yields strong resistance torque, while having high rigidity that can perform automatic vertical positioning and automatic positioning of the mast fully backward.
6. Apart from the standard drill, you can also select drilling tools as dirt bucket, bucket of sand, short thread of different sizes, which can drill on clay layer, layer of sand, gravel-layer coating of mud.
7. The whole machine is small, flexible and easy to carry and transfer.
