Home > Products > Foundation Works Machinery > YUTONG Professional Rock(30m) Drill Hydraulic Drilling Rig For Sale

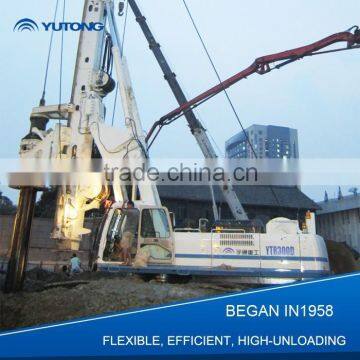

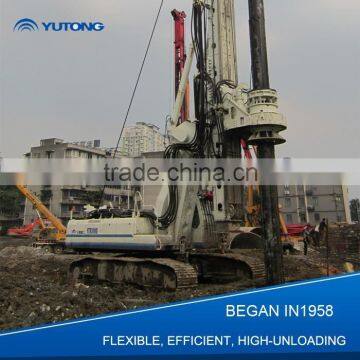

YUTONG Professional Rock(30m) Drill Hydraulic Drilling Rig For Sale

FOB Price

US$ 500,000 - 700,000 / Unit

1 Unit(Min. Order)

Port Qingdao Port Tianjin port Lianyungang port Shanghai port
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Rotary Drilling Rig
Power Type	Diesel	Place of Origin	China
Brand Name	YUTONG	Model Number	YTR300D
Usage	Ore	Voltage	24V
Power(W)	260(KW)	Dimension(LWH)	1726030003700
Weight	100t	Certification	the European Union CE certification
Warranty	12months/2000hours	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

YUTONG Professional Rock(30m) Drill Hydraulic Drilling Rig For Sale

Product Description

Main Technical Parameters of YTR300D Drilling Rig

Maximum drilling diameter of drilling rig		mm	2500
Drilling depth of drilling rig		m	30/52/76
Engine of drilling rig	Model	DE12T
	Manufacturer	DOOSAN
	Configured power	kW	260
Power head	Max. output torque	kN·m	300
Power head	Drilling speed	r/min	6~31
Pressurized cylinder	Maximum pressure	kN	215
	Maximum pull force	kN	230
	Stroke of sledge	mm	5330
Main winch	Lifting force	kN	280
	Maximum line speed	m/min	65
	Diameter of steel wire rope	mm	36
	Placement	Rear-mounted
Impact winch	Pull force (first floor)	kN	100
	Maximum line speed	m/min	70
	Diameter of steel wire rope	mm	26
Mast	Forwards inclination	°	5
Mast	Sidewards inclination	°	±3.5
Chassis	Width of crawler board	mm	800
	Towing force	kN	570
	Overall chassis length (wheel track)	mm	5000
Overall dimension	Equipment width under working state	mm	4300
	Equipment height under working state (no/with upper mast)	mm	20600/22300
	Equipment length under transportation state (no/with upper mast)	mm	17260/19710
	Equipment height under transportation state	mm	3700
	Equipment width under transportation state	mm	3000
Weights	Working state	t	100
Weights	Transportation state	t	85
Maximum length of drill rod without upper mast (drilling depth is 30 m)		3X12m φ508 machine-locked drill rod
Maximum length of drill rod with one section of upper mast (drilling depth is 52 )		4X14.5m φ508 machine-locked drill rod
Maximum length of drill rod with one section of upper mast (drilling depth is 76 m)		6X14.5m φ508 friction-type drill rod

Our Services

Service after sale is based on the principle of service. We will offer the “12380”service:

1: After receiving the customer mobile, we will help customer solve problem through removing the resources of YUTONG service and reply the customer clearly in one hours.

2: To improve the service quality all the time, in 2 working days of the end of on-sit service, we will pay a return visit about the satisfaction of after sale service.

3: To comprehensive ,systematically and professionally maintenance and repair for the customer product, we will have 3 times On-Site Inspection forwardly in warranty period.

8:The service engineer will solve problem in 8 hours after getting to on-sit. If the problem is not solve ,the service engineer can not leave the on-sit.

0: To eliminate customer worries, from receiving order to product scrapping, YUTONG will provide full reliance,seamless docking and service in the period of product using.

produce picture

Performance

Performance Characteristics of Rotary Drilling Rig

1. The drill rig adopts dual-boom parallelogram structure, providing flexible action and high construction efficiency. Meanwhile, such a structure enhances the capacity of torsion resistance of the luffing mechanism, making the rig more suitable for the construction on hard rock formation

2. Power head uses two groups of large-motor reductors, providing powerful power, reliable security and high transmission efficiency; the power head has three speeds and it can select speeds according to different strata and working condition, greatly improving the efficiency of construction

3. The impact winch adopts free-fall reductor. It is difficult for the drill rig to drill hard rock. At this moment, impact winch can be used to hoist and lower the impact hammer to damage the rock, and then drilling bucket can be used to pick up the slag, so as to improve the efficiency of drilling into the rock

4. The usage of telescopic chassis not only can meet the conditions of transport, but also can make the width of the complete machine reach 4.3 m during working, so it enhances machine stability and construction safety.

5. Casing drive is optional for completing full casing construction method.

6. Rear-placed main winch adopts lengthened-type large-diameter winding drum, which greatly improves the service life of steel wire rope.

7. The machine adopts centralized lubrication, making maintenance and use become easy and improving the disassembly and maintainability of the drill rig .

8. The rotary drilling rig is equipped with forehead cylinder, through which the pulley-yoke can automatically fold the mast, so as to reduce labor intensity and improve work efficiency.

9. The drill rig is equipped with support leg, which can provide support when the impact winch is working, so as to reduce the shaking and ensure the stability of complete machine.
