Home > Products > DTH Hammer Parts > Hot selling dth hammers and button bits for rock drilling tools /4" RC DTH hammer and bit /

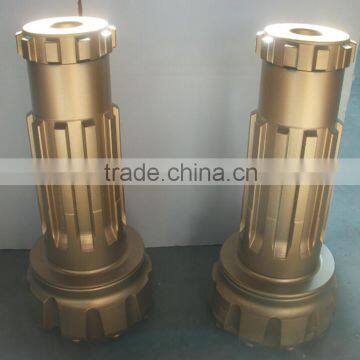

Hot selling dth hammers and button bits for rock drilling tools /4" RC DTH hammer and bit /
- 50000 Piece / Pieces per Month
- TianJin Port
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
4"-12" High-pressure hammer drill bits mining machine parts with Good Quality and Lower Price
-
mining and well drilling blast hole 6 inch / DTH340 dth hammer bit
-
DTH360/DHD345K Bit Shank/High Air Pressure DTH Hammers With Foot Vlave
-
China High quality DTH hammer and bit for sale
-
China Good Quality/3"-12" Hign pressure DTH Hammer and bit
-
110mm / 203mm DTH Spare Parts / Water Well Drilling Bits for Borehole Drilling Hammer
Product Details
| Place of Origin | Shandong, China | Brand Name | Miroc | |
| Model Number | RC DTH bit,RC DTH hammers and button bits, DTH hammers and button bits | Type | Other, DTH hammer and bit, RC DTH bit,RC DTH hammers and button bits | |
| Material | Other, Tungsten Carbide, Tungsten Carbide,Alloy steel bar and tungsten carbide bit | Use | Other, rock drill/tunneling/underground construction |
Product Description
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
• Medium to large size drilling diameters
• Works in high pressure range, capable of drilling deep hole lengths
Product Name: | rock drill tungsten carbide DTH button bits | |
Description: | rock drill tungsten carbide DTH button bits DTH button bit are used for blast hole drilling. Working with DTH hammer, mainly applied in Mining, Marble quarry or well drilling and other construction projects. | |
Material: | High quality carbide and High quality carbon steel | |
MOQ: | No requirement for testing and trial order | |
Compatibility Series: | COP/ SD/ DHD/ IR/ Mission/ QL/ BR/ CIR etc | |
Applications of DTH Bit
• Underground mining
• Tunneling
• Quarry benching operations
Competitive Advantage
• High grade tungsten carbide inserts
• Bit bodies manufactured from high grade steel and processed using state-of-the-art CNC machinery and heat treatment
Specification of DTH Bit
Part Number | Product Code and Brief Description | Flushing Holes | Diameter (mm) | Weight (kg) | Gauge Buttons ( No.x mm) | Front Buttons ( No. x mm) | DTH Hammer |
4148301682 | DTH65PQ | 1 | 68 - 72 | 1.5 | 4 x12 | 3 x 12 | DTH65 |
4148301683 | DTH75PQ | 3 | 75 - 77 | 2.4 | 5 x 12 | 3 x 12 | DTH70 |
4148301684 | DTH76PQ | 2 | 76 - 78 | 2.5 | 5 x 12 | 3 x 12 | DTH76 |
4148301685 | DTH76-78 | 2 | 78 - 82 | 2.6 | 5 x 12 | 3 x 12 | DTH76 |
4148301686 | DTH80PQ | 3 | 82 - 84 | 3 | 5 x 12 | 6 x 12 | DTH80, DTH80X |
4148301687 | DTH90A | 3 | 90 - 95 | 3.6 | 6 x 14 | 4 x 12 | DTH80, DTH80X |
4148301688 | DTH80XD-90 | 3 | 90 - 95 | 3.4 | 6 x 12 | 4 x 12 | DTH80XD |
4148301689 | DTH80-II-80 | 3 | 80 - 82 | 3 | 5 x 12 | 4 x 12 | DTH80-II |
4148301690 | DTH90B | 3 | 90 - 95 | 3.8 | 6 x 14 | 4 x 12 | DTH90, DTH90-I |
4148301691 | DTH90T1 | 2 | 90 - 95 | 3.6 | 6 x 14 | 1x12,3x12 (Spherical) | DTH90, DTH90-I |
4148301692 | DTH90T2 | 2 | 90 - 95 | 3.8 | 6 x 14 (Spherical) | 4 x 12 (Spherical) | DTH90, DTH90-I |
4148301693 | DTH90T3J | 3 | 90 - 95 | 3.6 | 6 x 14 (Ballistic) | 4 x 12 (Ballistic) | DTH90, DTH90-I |
Company Profile
KSQ Technologies (Beijing) Co. Ltd. is a company that shall cater to the needs of the construction and mining industries, with consideration on providing solutions to the following unique problems:
- Hazardous environment
- Acts, regulations, and other government guidelines that has to be followed
- Significant differences in the way people work, mostly due to physical constraints
- Avoiding downtime on major equipment which can cost tens of thousands of dollars per hour. The best solution with the most reasonable cost is a significant driver.
Contact Us
- KSQ Technologies (Beijing) Co., Ltd.
- Contact nameAileen Zhao Chat Now
- Phone86-10-60714361-8006
- AddressRm. 705, Unit 2, Floor 7, Building 6, Gulou South St., Chengbei St.
