DTH Sub Male-Male
Negotiable
/ Piece
20 Pieces(Min. Order)
- Beijing or Tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | MIROC | |
| Model Number | DTHSMM90/90-70-DTHSMM115/115-90 | Type | Other, DTH Sub Male-Male | |
| Machine Type | Drilling Tool | Certification | API | |
| Material | Carbide | Processing Type | Casting | |
| Use | Well Drilling |
Product Description
Specifications
High strength steel with high fatigue strength and excellent wear resistanceDescription
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
DTH drilling enables drillers to reach hole depths that are double of what top hammer drilling can do. This is possible with the use of DTH Pipes and DTH Subs.
Application
• Underground mining
• Quarry benching operations
• Water well drilling
Speficiation
<
| Part Number | A Thread | B Thread | Diameter A (mm) | Diameter A (inch) | Diameter B (mm) | Diameter B (inch) |
| 4148301593 | 2 3/8" API Reg | 2 3/8" API Reg | 90 | 3 1/2 | 90 | 3 1/2 |
| 4148301594 | 2 3/8" API Reg | 3 1/2" API Reg | 90 | 3 1/2 | 115 | 4 1/2 |
| 4148301595 | 3 1/2" API Reg | 3 1/2" API Reg | 115 | 4 1/2 | 115 | 4 1/2 |
<

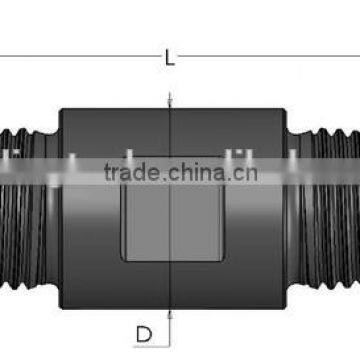

| Product Code and Brief Description | Length (mm) | Length (inch) | Wrench Flat (mm) | Wrench Flat (inch) | Weight (kg) |
| DTHSMM90/90-70 | 70 | 2 3/4 | 65 | 2 5/9 | 4.6 |
| DTHSMM90/115-97 | 97 | 3 5/6 | 95 | 3 3/4 | 9 |
| DTHSMM115/115-90 | 90 | 3 1/2 | 95 | 3 3/4 | 10 |
