Home > Products > Integral Rod > Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.31-40mm

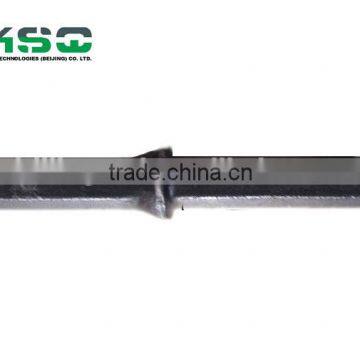

Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.31-40mm
Negotiable
/ Piece
20 Pieces(Min.Order)
- Beijing or Tianjin
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | MIROC | |
| Model Number | IH22-C40-800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | Type | Other, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.31-40mm | |
| Machine Type | Drilling Tool | Material | Carbide | |
| Processing Type | Casting | Use | Well Drilling |
Product Description
Specifications
High strength chromium-molybdenum steel with high fatigue strength and excellent wear resistanceHigh grade tungsten carb
Description
The H22 Integral drills steels, H22 x 108 mm shank, are the most common type within the Dimensional Stone Quarrying Industry. The product range includes a Ø26 - 40 mm bit diameters and lengths from 0.4 – 7.2 meters.
Application
• Dimensional Stone Quarrying Industry
• Underground Mining
• Tunneling
Specification
<
<
| Part Number | Product Code and Brief Description | Length (mm) | Length (ft/inch) | Bit Diameter (mm) | Weight (kg) |
| 4148300044 | IH22-C40-800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 800 | 2 5/8 | 40 | 3 |
| 4148300045 | IH22-C39-1600, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 1600 | 5 1/4 | 39 | 5.2 |
| 4148300046 | IH22-C38-2400-1, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 2400 | 7 7/8 | 38 | 8 |
| 4148300047 | IH22-C37-3200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 3200 | 10 1/2 | 37 | 10.2 |
| 4148300048 | IH22-C36-4000, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 4000 | 13 1/8 | 36 | 12.9 |
| 4148300049 | IH22-C35-4800, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 4800 | 15 3/4 | 35 | 15.1 |
| 4148300050 | IH22-C34-5600, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 5600 | 18 3/8 | 34 | 17.6 |
| 4148300051 | IH22-C33-6400, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 6400 | 21 | 33 | 20.1 |
| 4148300052 | IH22-C32-7200, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 7200 | 23 5/8 | 32 | 22.5 |
| 4148300053 | IH22-C31-8000, Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm | 8000 | 26 1/4 | 31 | 25 |
