DTH Drill Sub / DTH Adapter
US$ 80 - 200
/ Piece
10 Pieces(Min. Order)
- Tianjin Port Huangpu Port Shanghai Port Qingdao Port ect.
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm Dia.26-29mm
-
Chisel Bit Integral Rod Hex 19, Shank 19 mm x 108 mm Dia.23-34mm
-
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.23-29mm
-
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.25-34mm
-
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.31-40mm
-
Chisel Bit Integral Rod Hex 22, Shank 22 mm x 108 mm Dia.29-41mm
Product Details
| Place of Origin | Beijing, China | Brand Name | MIROC | |
| Type | Drill Pipe | Machine Type | Drilling Equipment | |
| Certification | API | Material | Stainless Steel | |
| Processing Type | Forging | Use | Other, Ore mining,Well drilling |
Product Description

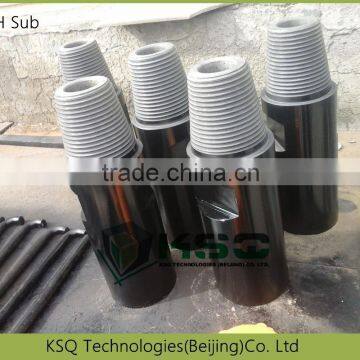

DTH Drill Sub / DTH Adapter
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
Specification:
| DTH Subs Specification | |||||||
| Female- Male | |||||||
| Female A | Male B | Diameter A | Diameter B | Length | Wrench flat | Weight | Part Number |
| mm | mm | mm | mm | kg | |||
| 2 3/8"API Reg | 2 3/8"API Reg | 77 | 77 | 140 | 65 | 4.0 | 4148301570 |
| 2 3/8"API Reg | 2 3/8"API Reg | 90 | 90 | 140 | 65 | 5.5 | 4148301571 |
| 2 3/8"API Reg | 2 3/8"API Reg | 102 | 102 | 130 | 76 | 7.8 | 4148301572 |
| 2 3/8"API Reg | 2 3/8"API Reg | 90 | 90 | 144 | 65 | 5.5 | 4148301573 |
| 2 3/8"API Reg | 2 3/8"API IF | 95 | 95 | 130 | 65 | 8.0 | 4148301574 |
| 2 3/8"API Reg | 2 7/8"API Reg | 90 | 102 | 120 | 95 | 10.5 | 4148301575 |
| 2 3/8"API IF | 3 1/2"API Reg | 90 | 90 | 164 | 65 | 6.8 | 4148301576 |
| 2 7/8"API Reg | 2 3/8"API Reg | 90 | 90 | 154 | 65 | 6.5 | 4148301577 |
| 2 7/8"API Reg | 2 3/8"API Reg | 90 | 115 | 120 | 95 | 11.0 | 4148301578 |
| 3 1/2"API Reg | 3 1/2"API Reg | 115 | 115 | 219 | 95 | 12.5 | 4148301579 |
| 3 1/2"API Reg | 2 3/8"API IF | 115 | 115 | 160 | 95 | 10.5 | 4148301580 |
| 3 1/2"API Reg | 2 7/8"API Reg | 115 | 115 | 160 | 95 | 10.8 | 4148301581 |
| 3 1/2"API Reg | 2 7/8"API IF | 115 | 115 | 160 | 95 | 10.8 | 4148301582 |
| 3 1/2"API Reg | 3 1/2"API Reg | 115 | 115 | 160 | 95 | 10.5 | 4148301583 |
| 3 1/2"API Reg | 4 1/2"API Reg | 146 | 146 | 132 | 120 | 16.5 | 4148301584 |
| 4 1/2"API Reg | 3 1/2"API Reg | 146 | 115 | 235 | 95 | 19.0 | 4148301585 |
| F48×10 | F42×10 | 59 | 59 | 203 | 40 | - | 4148301586 |
| F48×10 | F48×10 | 59 | 59 | 203 | 40 | - | 4148301587 |
| F48×10 | 2"API Reg | 59 | 59 | 203 | 40 | - | 4148301588 |
| Female - Female | |||||||
| Female A | Male B | Diameter A | Diameter B | Length | Wrench flat | Weight | Part Number |
| mm | mm | mm | mm | kg | |||
| 2 3/8"API Reg | 2 3/8"API Reg | 77 | 77 | 200 | 65 | 4.5 | 4148301589 |
| 2 3/8"API Reg | 2 3/8"API Reg | 90 | 90 | 200 | 65 | 6.0 | 4148301590 |
| 2 3/8"API Reg | 2 7/8"API Reg | 90 | 90 | 225 | 65 | 6.2 | 4148301591 |
| 2 3/8"API Reg | 3 1/2"API Reg | 115 | 115 | 210 | 95 | 10.0 | 4148301592 |
| Male - Male | |||||||
| Female A | Male B | Diameter A | Diameter B | Length | Wrench flat | Weight | Part Number |
| mm | mm | mm | mm | kg | |||
| 2 3/8"API Reg | 2 3/8"API Reg | 90 | 90 | 70 | 65 | 4.6 | 4148301593 |
| 2 3/8"API Reg | 3 1/2"API Reg | 90 | 115 | 97 | 95 | 9.0 | 4148301594 |
| 3 1/2"API Reg | 3 1/2"API Reg | 115 | 115 | 90 | 95 | 10.0 | 4148301595 |
Applications
• Underground mining
• Quarry benching operations
• Water well drilling
Pictures:
