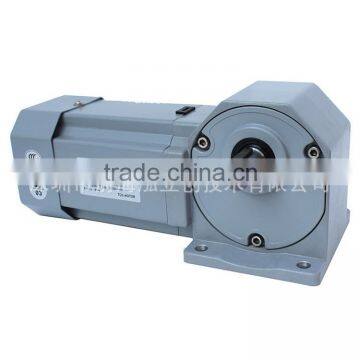

TCG hypoid retangular-axis gear motor

TCG Hypoid gear motor

1 TCG gear motor advantages
TCG minitype gear motor series used hypoid gear design , performance,both worem gear and bevel gear
with low noise characteristics of high effiency
1.1 Energy efficient Hypoid gear smaller sliding friction gear efficiency up to 98%
TCG series worm gear reducer efficiency ration imcreased by 15%_40%
1.2 Compact TCG hypodi gear certer distance from the center than the worm gear reducer 30%
TCG gear motor reducer size ; volume smaller
1.3 Low noise bevel gear meshing general<2 teeth, and hypoid gears have >2.5teeth meshing,the
operating noise lower than the bevel gear
1.4 High strenght ,long life Hypod gear has been advanced by the special steel processing technology
carburizing hardening process,its strenght ,life is far higher than the worm gear;
TCG series gear reducer used in the design of high -strength box design ,increasing the gear shaft axis
Drive,choose high -precision bearing load capacity ,toruqe requirements application to more
demanding workplace
1.5 Easy installtion Frome the output axis limits ,while providing the hollow sahft products ,allows
useers to select install more flexible and convenient .

TCG motor apply to transmission of auto-and smi-atuo-quipments use as precision transport,lift,
print,packing,medicing, foo ,electro and so for,They also apply very much to supporting devices suchas movies and
TV equipments ,stage lighting and body -Building apparatus etc

2 TCG gear motor characteristics
2.1 General technical condition
Insulation resistance>20M normatlity
Insulation strength:1500V/min brakedone or flashover
Limit of tem rise:75K
wire for motor: CQC 105C 600V
2.2 TCG gear motor basic consition
WOREK SYSTERM: cONTINUOUS
Way of colling : IC-40
2.3 Basici enviromments condition
Temperature:-10C to +40C
Relative humidy: 15%-90%
