Water Cooling Type High Capacity Waste Plastic Film Granulator Machine

FOB Price

USD $5,000 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Ningbo/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Machine Type	Other, granulating machine
Bag Type	Shopping Bag	Material	Plastic
Computerized	Yes	Place of Origin	Zhejiang, China
Brand Name	Kings	Model Number	SJ90/100/110/120
Voltage	380V	Power(W)	22KW
Dimension(LWH)	8000x1200x1800	Weight	2000kg
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Water Cooling Type High Capacity Waste Plastic Film Granulator Machine

1- Brief Introduction:

This machine is suitable for regeneration and granulation of waste plastics, as HDPE, LDPE, and PP, etc. It is equipped with quick motor-operated filter-screen-replacing unit and automatic temperature control. The granulating crusher uses adjustable speed motor, piloting with an extruding machine at the same discharging speed synchronistical. The unit is easy to operate, With a high output, steady performance, and favorable economic benefit.

2- Main Technical Variables:

Model type	SJ-90	SJ-100	SJ-110	SJ-120
Screw Diameter	¢90	¢100	¢110	¢120
Screw Ratio	L/D20:1-22:1	L/D20:1-22:1	L/D20:1-22:1	L/D20:1-22:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	22Kw	30Kw	37Kw	45Kw
Output	68kg/h	95kg/h	120kg/h	135kg/h
Weight of overall(kg)	2t	2.1t	2.2t	2.5t
cover dimensions(LxWxH)(mm)	8000x1200x1800	8200x1600x1800	8500x1600x1800	8800x1600x1800

Our Services

We provide 24 hours service by phone or email. Our engineer is available at any time if you need any

helps.

Accessories

SJ-100 PE Wind Cooling Hot Cutting Recycling Machine
1- Main Reduce Box	Hard surface reduce No.200 (Changsheng brand from Changzhou)
2- Main Motor	30kw ( Shuangyu motor from Hangzhou)
3- Screw Diameter	100mm×2000mm
4- L/D Ratio:	1:20
5- Filter Die Plate Diameter	200mm
6- Filter Changer Type	By motor
7- Filter Motor Size	2.2kw
8- Granules cutter	By motor 1.5kg,
9- Cutting blade working type	Rotary running
10- Blower	1 pc, 2.2kw
11. Recycling Bulk	Stainless steel
12. Tornado Barrel	1 pc, stainless steel
13. Storage Bulk	1pc, stainless steel
14. Electric Cabinet	1 pc
15. Heating type	Automatic Temperature Controller
16.Main motor	30 kw
17.Granules cutting motor	1.5kw with inverter controlling (Pioneer brand)

Detailed Images

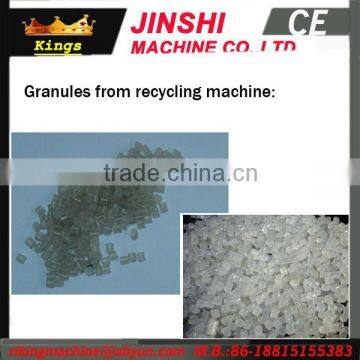

Finished Products

Packaging
