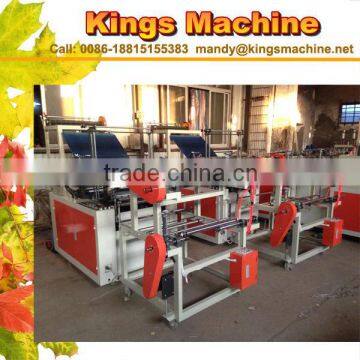

Bottom Sealing Bag Forming Machine for rolling flat bags and bags in pieces

FOB Price

USD $1,000 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Ningbo/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Machine Type	Bag Forming Machine
Bag Type	Shopping Bag	Material	Plastic
Computerized	Yes	Place of Origin	Zhejiang, China
Brand Name	Kings	Model Number	GFQ-600/700/800/900/1000
Voltage	220V	Power(W)	3.2KW
Dimension(LWH)	2650X1400X1550	Weight	820kg
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Bottom Sealing Bag Forming Machine for rolling flat bags and bags in pieces

1)This machine can make both flat bags& vest bags and rolling flat bags in two lines.

2) It is equipped with computer to set the bag length & width, pieces and batches of bags you want to make, speed, and temperature etc.,with a photo-eye to track the printed films to make printed bags. It has such functions like auto-alarming, auto-stop, and auto counting etc.

Model	GFQ-700	GFQ-900	GFQ-1000
Max Width	600mm	800mm	900mm
Max Length	1000mm	1000mm	1200mm
Sealing and Cutting Thickness	0.006-0.10mm	0.01-0.10mm	0.01-0.10mm
Speed per Minute	40-120pcs/min	40-120pcs/min	40-120pcs/min
Error in Length	1.1mm	1.1mm	1.1mm
Power of Main Motor	1.5kw	1.5kw	2.2kw
Heating Power	1.5kw	2kw	2.5kw
Total Power	3.2kw	4.3kw	5.8kw
Weight of Machine	820kg	900kg	1100kg
Overall Dimensions(mm)	2650X1400X1550	2800X1500X1550	2800X1700X1550

Our Services

We provide 24 hours service by phone or email. Our engineer is available at any time if you need any

helps.

Accessories

Main Components of 4 lines of Heat Sealing and Cold Cutting Bag Machine
Item	Name	Piece	Original Place
1	XC2005B Computer Control	1 pc	Made-in Wuxi
2	Mixture step motor 350A	1pc
3	HB-BBC Driver	1 pc
4	Inverter		Euro
5	Switch		CHNT
6	Main motor	1 pc	1.5kw
7	Rear unwinding motor	4 pcs	300kw
8	Rear unwinding photo-eye	4 pcs	Made-in-Yu'yao
9	Tracking Photo-eye	1 pc	Made-in China
10	Diligent Bronze Controller		From Yu'yao
11	White steel cutting blade		from Ma'anshan
12	Sealing blade	2 pcs	62bronze
13	DC motor 300kw	4pcs	Made in Anhui
14	Rubber Roller	10 pcs	Resistence materials
15	Speed controller	4 pcs	Made in our factory
16	Electrics		Chnt brand
17	thermal element	4 pcs,,	stainless steel
18	machine structure	steel and Cast Iron
