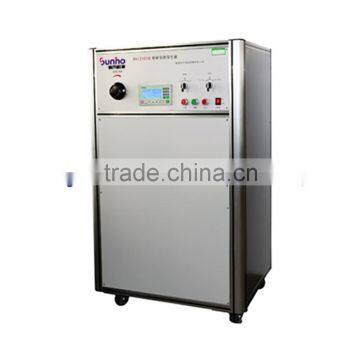

Surge voltage test bench
- 30 Set / Sets per Month
You May Like
Product Details
| Place of Origin | China | Brand Name | Sunho | |
| Model Number | SH3101A | Power | Electronic | |
| Usage | Other, Safety tester |
Product Description
Surge voltage test bench is designed according to the Surge voltage test requirements in the UL943 standards.
Technical characteristics
The test can adjustable from DC1000V-7000V, voltage table show.
When it is without load the waveform is as follow:
The start rasing time between 10% ~ 90% amplitude is 0.5ms;
The following Oscillatory wave cycle is 10ms.
Each continuous crest of the wave is the 60% of the before crest of the wave.
The surge impedance of the Surge generator impedance is 50 Ohm.
Surge generator relay control circuit based on figure 23.2 of the UL943, and add the regular open buttons and switches.
With the 60 seconds interval random impose 10 times 6KV and 10 times 3KV of the surge impact. With the Surge test terminals, without oscilloscope.
