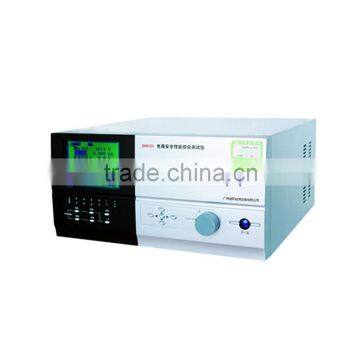

Withstand voltage tester

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Withstand voltage tester is designed according to the relevant standards requirements of IEC60335.

To suit to the produce enterprise which produce medium and small type electrical products and quality inspection department.

Instrument power supply: 220V±10%, 50Hz (Other power specifications can be customized)

Breakdown Sound and Light to give an alarm, and also can auto resection when it is at high voltage.

Not only can do the electric strength test of the products, but also can do the cold leakage current test.

Equip with the external starting interface and the high stick with external starting controller.

Technical parameters

1. Voltage(KV) is AC 0.5~5

2. Current is 0.5~100 mA

3. Alarm set (mA) can free set from 0.5 to the maximum value.

4. Capacity KVA is 2.5

5. Precision: Voltage is ±(3% Readings, current is ±(5% Readings)

6. Time set(s/min) is 0-99

7. Size is 340x140x390
