Home > Products > Electric Motors > 0.09kw-11kw MS three phase aluminum casing AC motors ac synchronous motor prices

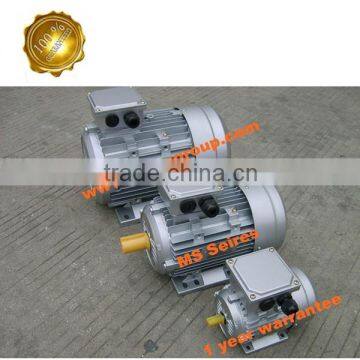

0.09kw-11kw MS three phase aluminum casing AC motors ac synchronous motor prices
- FUZHOU
- T/T
You May Like
-
Y series 3 phase electric motor
-
1HP 2HP 3HP 5HP 10HP 20HP 30HP 40HP 50HP Electric Motor / electrical motor
-
ac dynamo motor / electric motor dynamo
-
JY Series 1 hp 2hp 3hp 220v ac electric motor / ac electric motor/ electric motors prices
-
YB2 Explosion proof motor
-
Air cooled small robin engine / gasoline engine gx200 6.5hp
Product Details
| Brand Name | I-MAX | Model Number | MS | |
| Type | Induction Motor | Frequency | 50 | |
| Output Power | 0.12kw-11kw | Protect Feature | Totally Enclosed | |
| Phase | Three-phase | Certification | CCC, CE | |
| AC Voltage | 208-230 / 240 V | Place of Origin | Fujian, China | |
| Efficiency | IE 1 |
Product Description
Specifications
ac motorac synchronous motor
ac motor prices
ac motor manufacture
capacitor start
0.09kw-11kw MS three phase aluminum casing AC motors ac synchronous motor prices
Specifications
MS three phase electric motor 220/380v:
1.certification:CCC ISO
2.IEC standard
3 .OEM
MS three phase electric motor 220/380v:
1. MS series aIuminium housing three-phase asynchronous motors, with latest design in entirety are made of selected quaIity materials and conform to the lEC standard which have good performance, safety and reIiable operation, nice appearance, and can be maintained very conveniently , with Iow noises, IittIe vibration and light weight and simpIe construction.
| Ambient temperature | -15°c to 40 °c |
| Altitude | ≤1000m |
| Rated voltage | 380V, 400V, 415V, 220V, 230V, 240V, etc |
| Rated frequency | 50HZ, 60HZ, 50HZ/60HZ |
| Duty | Continuous(S1) |
| Insulation class | Class B, Class F |
| Protection class | IP44, IP54, IP55 |
| Cooling method | IC0141 |
0.09kw-11kw MS three phase aluminum casing AC motors ac synchronous motor prices
| Model | Output | Voltage | Frequency | Current | Eff | Power Factor | Speed | |
| (KW) | (V) | (Hz) | (A) | 100 | 75 | (r/min) | ||
| (%) | (%) | |||||||
| MS631-2 | 0.18 | 380 | 50 | 0.53 | 65 | 63.1 | 0.8 | 2720 |
| MS632-2 | 0.25 | 380 | 50 | 0.69 | 68 | 65.1 | 0.81 | 2720 |
| MS631-4 | 0.12 | 380 | 50 | 0.42 | 57 | 56.1 | 0.72 | 1310 |
| MS632-4 | 0.18 | 380 | 50 | 0.62 | 60 | 58.5 | 0.73 | 1310 |
| MS711-2 | 0.37 | 380 | 50 | 0.99 | 70 | 69 | 0.81 | 2740 |
| MS712-2 | 0.55 | 380 | 50 | 1.4 | 73 | 71.2 | 0.82 | 2740 |
| MS711-4 | 0.25 | 380 | 50 | 0.79 | 65 | 62.4 | 0.74 | 1330 |
| MS712-4 | 0.37 | 380 | 50 | 1.12 | 67 | 65.3 | 0.75 | 1330 |
| MS801-2 | 0.75 | 380 | 50 | 1.78 | 76.3 | 74.3 | 0.84 | 2836 |
| MS802-2 | 1.1 | 380 | 50 | 2.56 | 77.8 | 75.9 | 0.84 | 2840 |
| MS801-4 | 0.55 | 380 | 50 | 1.52 | 71.4 | 69.5 | 0.76 | 1410 |
| MS802-4 | 0.75 | 380 | 50 | 2 | 73.8 | 72.1 | 0.77 | 1415 |
| MS90S-2 | 1.5 | 380 | 50 | 3.43 | 79.1 | 77.2 | 0.84 | 2840 |
| MS90L-2 | 2.2 | 380 | 50 | 4.85 | 81 | 80 | 0.75 | 2840 |
| MS90S-4 | 1.1 | 380 | 50 | 2.86 | 75.8 | 73.8 | 0.77 | 1425 |
| MS90L-4 | 1.5 | 380 | 50 | 3.69 | 78.3 | 76.1 | 0.79 | 1425 |
| MS90S-6 | 0.75 | 380 | 50 | 2.28 | 69.3 | 67.6 | 0.72 | 918 |
| MS90L-6 | 1.1 | 380 | 50 | 3.16 | 72.5 | 70 | 0.73 | 920 |
| MS100L-2 | 3 | 380 | 50 | 6.3 | 83.2 | 81.9 | 0.87 | 2845 |
| MS100L1-4 | 2.2 | 380 | 50 | 5.12 | 80.6 | 78 | 0.81 | 1430 |
| MS100L2-4 | 3 | 380 | 50 | 6.62 | 82.3 | 80 | 0.82 | 1430 |
| MS100L-6 | 1.5 | 380 | 50 | 3.98 | 76.4 | 74.1 | 0.7 | 940 |
| MS100L1-8 | 0.75 | 380 | 50 | 2.39 | 71.2 | 67 | 0.67 | 698 |
| MS100L2-8 | 1.1 | 380 | 50 | 3.32 | 73 | 69 | 0.69 | 700 |
| MS112M-2 | 4 | 380 | 50 | 8.1 | 85.2 | 84 | 0.88 | 2890 |
| MS112M-4 | 4 | 380 | 50 | 8.79 | 84.3 | 82.9 | 0.82 | 1440 |
| MS112M-6 | 2.2 | 380 | 50 | 5.53 | 79.6 | 77.3 | 0.76 | 975 |
| MS112M-8 | 1.5 | 380 | 50 | 4.39 | 75.2 | 73.8 | 0.69 | 705 |
| MS132S1-2 | 5.5 | 380 | 50 | 11 | 86 | 84 | 0.88 | 2890 |
| MS132S2-2 | 7.5 | 380 | 50 | 14.9 | 87.2 | 85.8 | 0.88 | 2890 |
| MS132S-4 | 5.5 | 380 | 50 | 11.8 | 85.5 | 83 | 0.83 | 1450 |
| MS132M-4 | 7.5 | 380 | 50 | 15.6 | 87.1 | 84 | 0.84 | 1455 |
| MS132S-6 | 3 | 380 | 50 | 7.36 | 81.5 | 79 | 0.76 | 953 |
| MS132M1-6 | 4 | 380 | 50 | 9.66 | 82.9 | 80.2 | 0.76 | 955 |
| MS132M2-6 | 5.5 | 380 | 50 | 12.9 | 84.6 | 82.1 | 0.77 | 960 |
| MS132S-8 | 2.2 | 380 | 50 | 6 | 78.2 | 77 | 0.71 | 710 |
| MS132M-8 | 3 | 380 | 50 | 7.86 | 79.4 | 78.4 | 0.73 | 710 |
0.09kw-11kw MS three phase aluminum casing AC motors ac synchronous motor prices
0.09kw-11kw MS three phase aluminum casing AC motors ac synchronous motor prices
0.09kw-11kw MS three phase aluminum casing AC motors ac synchronous motor prices
--More Electric Motors for selection
0.09kw-11kw MS three phase aluminum casing AC motors ac synchronous motor prices
If you are interested in the above products or would like to have more information, pls visit our webiste or call us 0086-15860695366 (24 hrs online), we will get back to you as soon as possible!
