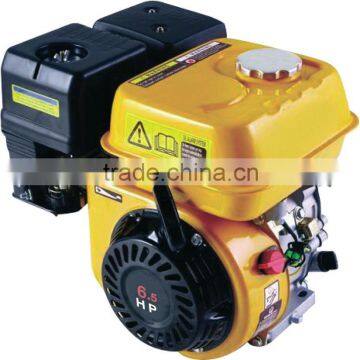

ohv gasoline engine 6.5hp
US$ 53 - 153
/ Set
50 Sets(Min. Order)
- FUZHOU
- T/T
You May Like
Product Details
| Condition | New | Usage | Other, machine, auto tools, etc. | |
| Fuel | Gasoline | Stroke | 4 Stroke | |
| Cylinder | Single Cylinder | Cold Style | Other, Air-cooled | |
| Start | Electric Start | Place of Origin | Fujian, China | |
| Brand Name | I-MAX | Model Number | 6.5hp | |
| Dimension(L*W*H) | 470*430*480mm | Weight | 17 kgs | |
| Certification | CE ISO | Warranty | 12 months | |
| After-sales Service Provided | Overseas third-party support available |
Product Description
ohv gasoline engine 6.5hp
Product Description
ohv gasoline engine 6.5hp ---Specification
| Model | iM168-1(160) | iM168-2(240) | iM170(E) | iM188(390)(E) | iM190(E) |
| Type | Vertical,air-cooled,4stroke, single-cylinder | ||||
| Bore x stroke(mm) | 68x45 | 68x45 | 70x54 | 88x64 | 90x66 |
| Displacement (ml) | 163 | 198 | 207 | 389 | 407 |
| Engine speed(rpm) | 3000/3600 | ||||
| Output | 5.5HP | 6.5HP | 7.0HP | 13HP | 15HP |
| Fuel consumption rate(g/kw-h) | < and =360 | ||||
| Fuel tank capacity(L) | 3.6 | 3.6 | 3.6 | 6 | 6 |
| Starting way | recoil starting/key starting | ||||
| Net weight(kg) | 15/17(E) | 15/17(E) | 17/19 | 31/33(E) | 31/33(E) |
| Dimension (mm) | 400x312x335 | 400x312x335 | 400x312x335 | 450x410x460 | 450x410x460 |
ohv gasoline engine --5.5HP (IM168-1)
ohv gasoline engine ----IM168-2 (6.5HP)
ohv gasoline engine ---(IM170F)--7.0HP
ohv gasoline engine ----IM188 (13HP)
ohv gasoline engine ----IM188E (electric starter)(Optional)
ohv gasoline engine ---Production
Our Services
Warrantee: 12 months. During the warranted time, our company would be responsible for problems caused by quality of production or raw material, we send spare parts 2% which is problem free of charge, except the damageable spare parts of engines caused by incorrect man-made operation. After expiration, our company provides cost maintenance. Further terms could be negotiable!
If you are interested in the above products or would like to have more information, pls visit our webiste or call us 0086-15860695366 (24 hrs online), we will get back to you as soon as possible!
