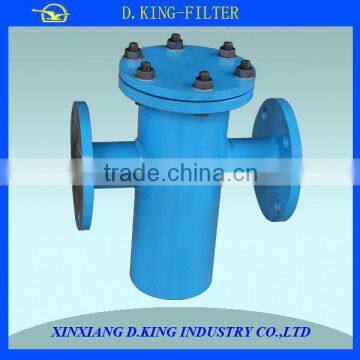

flange type connection basket in-line strainers

FOB Price

USD $100 - $820 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Return Filter
Structure	Other, Y type	Place of Origin	Henan, China
Brand Name	DK	Model Number	FIR
Weight	25kg	Dimension(LWH)	200150450
Certification	ISO9000	Warranty	1year
After-sales Service Provided	Overseas service center available

Introduction:

Basket in-line strainers is belong to pipeline rude filter series . Normally installed in pressure reducing valve,

pressure relief valve, the valve for water or other equipment inlet end . Used to clean up the impurity in the

media, in order to protect the valve and the equipment normally use . Basket filter is a kind of indispensable

filtering device which is transport medium pipeline system .

Advantages:

It has many advantages , eg : easy made , advanced structure , easy install and washing , big accept dirt ,

small resistance , easy drain contamination .

Technical parameters:

1.Housing material : carbon steel , stainless steel

2.Nominal diameter : DN25-DN400 mm

3.Filter screen material : stainless steel

4.Sealing material : NBR , pllytef (according to working medium )

5.Working temperature : no more than 90 centigrade

6.Connection type : flange

7.Normal pressure : 1.6MPa

8.Micron rating : 10-480 mesh (water 18-30 mesh , gas 40-100 mesh , oil 100-480 mesh)

Model and size:

...
