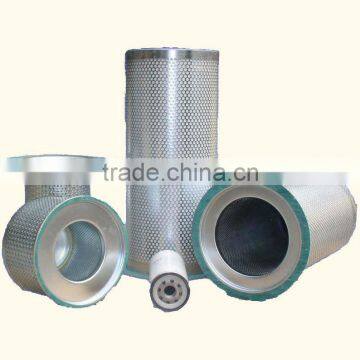

air filtration oil separator filter element

FOB Price

US$ 2 - 10 / Piece

100 Pieces(Min. Order)

Port Shanghai/Qingdao
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Return Filter	Structure	Cartridge
Place of Origin	Henan, China	Brand Name	dakang
Model Number	YQLXII

Product Description

Specifications

air filtration
1.export standard and MANN brand
2.stainless steel material
3.factory manufacture
4.ISO9001-2008

Introductions:

As oil and gas separation filter in rotary air compressor and vacuum pump, due to the compressed air separation, condenses oil vapor. YQLX series filter adopts high superfine fiber agglomerate anti-corrosion materials as filtration, advance by filter layer, superfine fiber layer, support layer and layer and layer, etc, to ensure settlement of large oil can be separated directly, tiny oil gas dissolved in through the filter was disintegrated into the oil droplets greatly condenses and exclusion. With high efficiency filtration separation (after no more than oil gas 3mg/m3), the

initial pressure.

Details

Model	flowing(m3/min)	Residual oil(mg/m3)	initial pressure differential(MPa)	Working pressure(MPa)	Working temperature(°C)	Size (mm)				MANN Corresponding model
Model	flowing(m3/min)	Residual oil(mg/m3)	initial pressure differential(MPa)	Working pressure(MPa)	Working temperature(°C)	D	D1	D2	L	MANN Corresponding model
YQLX I-2	2	3	0.02	0.7	120	φ170	φ88	φ135	200	49 000 50 531
YQLX I-3.5	3.5					φ170	φ88	φ135	305	49 000 50 411
YQLX I-3.5	3.5					φ200	φ123	φ170	230	49 000 50 201
YQLX I-4.5	4.5					φ200	φ123	φ170	305	49 000 50 121
YQLX I-6.5	6.5					φ200	φ123	φ170	435	49 000 50 111
YQLX I-8	8					φ328	φ220	φ272	305	49 000 50 101
YQLX I-9	9					φ274	φ165	φ220	435	49 000 50 171
YQLX I-12	12					φ328	φ220	φ275	450	49 000 50 321
YQLX I-12	12					φ274	φ165	φ220	600	49 000 50 131
YQLX I-14	14					φ355	φ245	φ300	500	49 000 50 191
YQLX I-17	17					φ355	φ245	φ300	600	49 000 50 181
YQLX I-19	19					φ355	φ245	φ300	660	49 000 50 221
YQLX I-20	20					φ324	φ220	φ275	750	49 000 50 521
YQLX I-24	24					φ355	φ245	φ300	820	49 000 50 481
YQLX I-29	29					φ355	φ245	φ300	1000	49 000 50 541
YQLX I-42	42					φ570	φ400	φ475	900	49 000 50 581

Model	Flowing (m3/min)	Residual oil(mg/m3)	Initial pressure differential	Working Pressure (MPa)	Working Temperature(°C)	Size (mm)				MANN corresponding model
Model	Flowing (m3/min)	Residual oil(mg/m3)	Initial pressure differential	Working Pressure (MPa)	Working Temperature(°C)	D	D1	D2	L	MANN corresponding model
YQLXII-3.5	3.5	3	0.02	0.7	120	φ220	φ75	φ135	160	49 301 52 121
YQLXII-4.5	4.5					φ170	φ75	φ135	200	49 301 52 131
YQLXII-6.5	6.5					φ200	φ109	φ170	230	49 301 52 101
YQLXII-9	9					φ200	φ109	φ170	305	49 302 52 131
YQLXII-16	16					φ355	φ220	φ300	305	49 303 52 121
YQLXII-20	20					φ328	φ209	φ275	400	49 303 52 111
YQLXII-22	22					φ355	φ220	φ300	400	49 304 50 101
YQLXII-28	28					φ355	φ220	φ300	500	49 305 52 111
YQLXII-33.5	33.5					φ335	φ220	φ300	600	49 305 52 101
YQLXII-39	39					φ355	φ220	φ300	700	49 305 52 102
