10/100M Cascaded 2 Fiber Ports 3 RJ45 Ports 5 Ports Media Converter Quality Choice

Overview

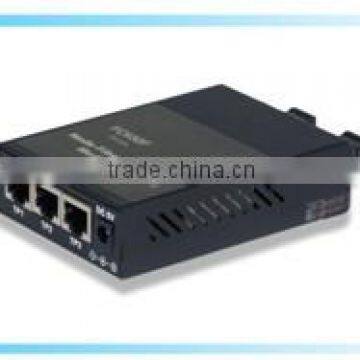

HiOSO FC650E is a kind of 10/100Mbps adaptive fast Ethernet fiber converter, with a built-in 2 ports 10/100Mbps adaptive switch, which can implement mutual conversion between 10Base-T/100Base-TX twisted pair electrical signal and 100Base-FX optical signal. This type of fiber converter can extend the transmission distance of a network from 100m over copper wires to 120Km. This type of fiber converter supports two different types of network connection media types: 10/100Base-TX and 100Base-FX. With the application of the switching technology and the storing & forwarding technology, this kind of converter supports transmission in dual-fiber multi-modedual-fiber single-mode and single-fiber single-mode fibers.

Features

• Adaptive 10Mbps and 100Mbps environment, for the convenience of network upgrade;
• Efficient built-in switching core, to implement flow control and reduce broadcast packets;
• Providing 2 independent 10/100Mbps adaptive switching-type twisted pair ports, to implement electrical interface backup and multi-user access;
• Providing electrical interfaces based on VLAN switch setting, and supporting the connection of users from different units;
• Supporting full-duplex and half duplex transmission modes and capable of automatic negotiation;
• Supporting automatic crossing of twisted pair ports, for the convenience of system debugging and installation;
• Supporting the transmission of extra-long packets (with the maximum length of 1552 bytes);
• Supporting Quality of Service (QoS) and ensuring transmission of VoIP packets;
• Supporting Spanning Tree Protocol (STP) to form a redundant network;
• Low power consumption, low heat dissipation and capable of stable operation for a long period of time;
• Supporting multiple types of fiber ports such as dual-fiber multi-modedual-fiber single-mode and single-fiber single-mode, expanding the requirements of users;

Application

10/100Mbps fast Ethernet long-haul transmission network
