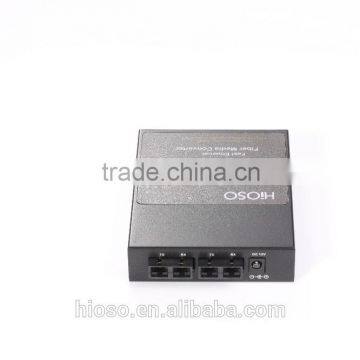

2 100Base-FX Fiber Ports and 3 10/100Base-TX Media Converter

FOB Price

US$ 1 - 74 / Pair

1 Pair(Min. Order)

Port shenzhen
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Guangdong, China		Brand Name	HiOSO
Model Number	FC650R

Product Description

2 100Base-FX Fiber Ports and 3 10/100Base-TX Media Converter

Overview

HiOSO FC650R series Ring type Media Converter is designed to meet requirements of multi fiber access network. It provides 2 100BASE-FX fiber ports and 3 10/100BASE-TX RJ45 ports, and one Console port, which provide not only point to point network connection, but also point to multi-point chain network. It has extend the transmission distance of a network from 100m over copper wires to 120Km (single-mode full duplex) and is applied to highway network system, mine communication system and other chain multi-point networks.

Features

l Provide two 10/100M fiber ports, three 10/100M RJ45 ports

l Support gigabit fiber Hiper-Ring network

l Support 128 ring network nodes

l Support redundant ring network protection (switching time<50ms, RSTP/STP

l Support WEB management, RSR (Rapid Super Ring)

l Working temperature is -10℃~70℃

l Supporting multiple types of fiber ports, such as dual-fiber multi-mode,dual-fiber single-mode and single-fiber single-mode, to satisfy the extended requirements of users

Technical Specifications:

Parameters	Specifications
Standard	IEEE802.3 10Base-T Ethernet,IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.1d Spanning Tree
Wavelength	850nm/1310nm/1550nm
Transmission distance	Dual-fiber multi-mode: 220m(optical fiber size 62.5/125μm)/550m(optical fiber size 50/125μm) Dual-fiber single-mode: 10/20/40/60/80/100/120Km Single-fiber single-mode: 10/20/40/60/80Km Category-5 twisted pairs : 100m
Port	3 RJ45 port: Connected to STP/UTP category-5 twisted pairs 2 fiber port: Multi-mode – SC (fiber size: 50,62.5/125μm) Single mode – SC/FC fiber port (fiber size: 9/125μm) Single-fiber single-mode – SC/FC fiber port (fiber size: 9/125μm)
MAC table	1K
Buffer space	512Kbit
Delay	<10us
Bit error rate	<1/1000000000
MTBF	100,000 hours
LED	POWER(PWR),FX LINK1/2(fiber link/action),TP LINK1000 1/2/3(twisted pair link/action 1000M),TP LINK/ACT1/2/3 (twisted pair packet forwarding link/action)
Power	DC 12V
Power consumption	5W
Operating temperature	-10~70℃
Operating humidity	5%~90%
Storage temperature	-40~80℃
Storage humidity	5%~90% (non-condensing)
Dimensions	26mm(H)96mm(W)120mm(D)/ (height * width * depth) (external power)

Order Information

Type	Rate (Mbps)	Mode	Working Wavelength (nm)	Transmission Distance (Km)	Fiber Interface	Power
FC650RM-SC	10/100	Dual-fiber multi-mode	1310	2	SC/ST	External DC12V
FC650RS20/40/60-SC	10/100	Dual-fiber single-mode	1310	25/40/60	SC	External DC12V
FC650RS80/100/120-SC	10/100	Dual-fiber single-mode	1550	80/100/120	SC	External DC12V
FC650RSS20/40/60-SC	10/100	Single-fiber single-mode	1310/1550	25/40/60	SC	External DC12V
FC650RSS80/100-SC	10/100	Single-fiber single-mode	1310/1550	80/100	SC	External DC12V
