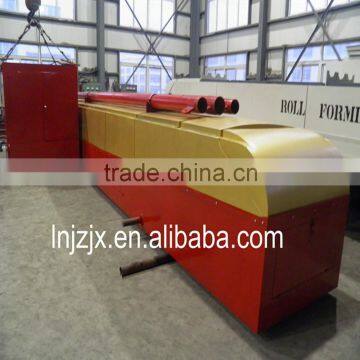

China Pro-240 Arch Building Making Roll Forming Machine
- 10 Set / Sets per Month
- Dalian
You May Like
-
China Pro-914-610 Arch Building Material Making Machine
-
China Pro KS Arch Roof Sheet Roll Forming Machine
-
China Arch Curving Roof Sheet Building Roll Forming Machine
-
China Arch Curving Roof Tile Roller Forming Machine
-
China CNC Arch Roof Sheet Building Roller Forming Machine
-
China No Girder Arch Roof Sheet Building Machine
Product Details
| Place of Origin | Liaoning, China | Brand Name | Pro, PRO | |
| Model Number | 610/303, PR914-610/PRO240 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
China Pro-240 Arch Building Making Roll Forming Machine
Technical Parameter of Arch Roof Machine | |
Dimension | 8900mm X 2200mm X 2300mm (Single axle & 4 tires) |
Total Weight | About 8Ton |
Bending Leaf | 10mm thickness, processed by CNC |
Cutting blade | 12CrMoV material, Heat treatment |
Cutting type | Mechanical Cutting |
Forming type | Roll-formed and length-set cutting. |
Total motor power | 19.7KW |
Main Motor Power | 7.5KW |
Bending Power | 3.0KW+1.5KW x 2 |
Cutting Power | 4.0KW |
Seaming Power | 1.1KW+1.1KW |
Roller Material | 45# high-quality steel, quenched HRC 55~65, hard chrome plating. |
Shaft Material | 45# high-quality steel, galvanized |
Bearing | Made in Harbin |
Stand of molding | 13+1 |
Rolling material width | Feeding width :914mm |
Effective width : 610mm | |
Using rate | 66.7% |
Thickness | 0.8-1.5mm |
Working Speed | 15m/min |
Bending Part | 13m/min |
Seaming | 16m/min |
Suitable width | 12~42m |
De-coiler | Inner-diameter of coil : 450mm ~ 650mm |
| Max width of coil : 914mm ~ 934mm |
| Load : 10Ton |
Design drawing
Arch panel type
Constituent parts of machine
The stronger of steel frame
Machine rollers
Arching curving
Hydraulic cutting
Picture of project
Model list
Model
| Feeding width (mm) | Effective width (mm) | Use ratio | Rolling thickness (mm) | Capable width | Suitable width |
PR-600-305 | 600 | 305 | 50.8% | 0.6-1.5 | 4-28 | 4.8-22 |
PR-600-300 | 600 | 300 | 50% | 0.6-1.5 | 4-30 | 4.8-24 |
PR-914-400 | 914 | 400 | 43.7% | 0.8-1.5 | 4-40 | 12-25 |
PR-914-610 | 914 | 610 | 66.7% | 0.8-1.5 | 4-38 | 6-32 |
PR-914-650 | 914 | 650 | 71.1% | 0.8-1.5 | 4-26 | 6-30 |
PR-914-700 | 914 | 700 | 76.5% | 0.8-1.5 | 4-22 | 6-22 |
PR-914-750 | 914 | 750 | 82% | 0.8-1.5 | 4-14 | 6-20 |
PR-1000-610 | 1000 | 610 | 61% | 0.9-1.5 | 5-42 | 10-32 |
PR-1000-680 | 1000 | 680 | 68% | 0.9-1.5 | 5-38 | 10-30 |
PR-1000-700 | 1000 | 700 | 70% | 0.9-1.5 | 5-30 | 10-20 |
PR-1000-750 | 1000 | 750 | 75% | 0.9-1.5 | 5-24 | 10-18 |
PR-1000-800 | 1000 | 800 | 80% | 0.9-1.5 | 5-18 | 10-16 |
PR-1200-800 | 1200 | 800 | 66.7% | 1.2-1.5 | 6-42 | 7.5-35 |
PR-1220-800 | 1220 | 800 | 65.5% | 1.2-1.5 | 6-45 | 7.5-35 |
PR-1250-800 | 1250 | 800 | 64% | 1.2-1.5 | 6-50 | 7.5-35 |
Packaging&Shipping
Naked by vessels 40HQ*1
Company information
Yingkou Professional Roll Forming Machine Co., Ltd.is a professional manufacture of roll forming machine.
We can produce many kinds of different models equipments: single axle, double axles, three axles, floor type, whole hydraulic type etc.
PLC, servo motor and generator provide software support. We can instruct clients to do projects, offer technical support for clients,
including project design, drawing supplied and engineer supplied. Clients who purchase our equipments can create largest profit space.
Our arch sheet forming machine can directly by produced on worksite, effectively lowering the cost. The project is widely used in large-scale and mid-scale industrial construction, such as factory, warehouse, garage, gymnasium, exhibition center, cinema,
theatre and so on.
Our company
Marketing distribution
Q: Are You the factory or trade company?
A:We are the factory,found in 2000
Q: Can you make the machine according to my demand?
A: Yes. we have professional team and development personnel can plan to the suitable designs you need.
Q:What's the MOQ?
A:One set, more should be discount.
Q:What's the type of payment?
A:T/T(30% T/T in advance,70% T/T before shipment )
Q:Why we choose you of all the same industry?
A:Our company have competitive quality and price in the whole industry,welcome to you visit any time.
Q: Do you have longlife after-sales service support?
A: Yes, our machine warranty period is 13 month, and support lifelong service.
B.We can offer the engineer technical support if you need.
