Automatic Arch Curving Roof Tile Roll Forming Machine
- Dalian

You May Like
-


Automatic Control Arch Roof Sheet Making Roll Forming Machine
 -


Arch Roof Sheet Material Making Roll Forming Machine
 -


PRU-1000-610 Multi-shape Arch Roof Building Machine or Curve Forming Machine
 -


PRO-120 Arch Sheet Roll Forming Machine or Roofing Machine
 -


PRS-1000-610 Screw-joint Arch Steel Bending Machine
 -


Arch Building Material Making Roller Forming Machine

Product Details
| Place of Origin | Liaoning, China | Brand Name | Pro, PRO | |
| Model Number | 610/303, PR914-610/PRO240 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic Arch Curving Roof Tile Roll Forming Machine
Technical Parameter of PR-914-610
Dimension : 8900mm X 22300mm X 2300mm (Single axle & 4 tires)
Total Weight : About 8Ton
Bending Leaf : 10mm thickness, processed by CNC
Cutting blade : 12CrMoV material, Heat treatment
Cutting type : Mechanical Cutting
Forming type: Roll-formed and length-set cutting.
Total motor power : 19.7KW
Main Motor Power : 7.5KW
Bending Power : 3.0KW+1.5KW x 2
Cutting Power : 4.0KW
Seaming Power: 1.1KW+1.1KW
Roller Material : 45# high-quality steel, quenched HRC 55~65, hard chrome plating.
Shaft Material : 45# high-quality steel, galvanized
Bearing : Made in Harbin
Stand of molding : 13+1
Rolling material: Width : Feeding width :914mm
Effective width : 610mm
Using rate : 66.7%
Thickness : 0.8-1.5mm
Working Speed : Forming Part : 15m/min
Bending Part: 13m/min
Seaming : 16m/min
Suitable width : 12~42m
De-coiler : Inner-diameter of coil : 450mm ~ 650mm,
Max width of coil : 914mm ~ 934mm Load : 10Ton

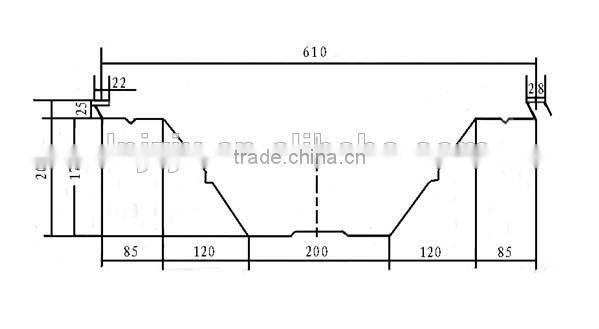

Design drawing

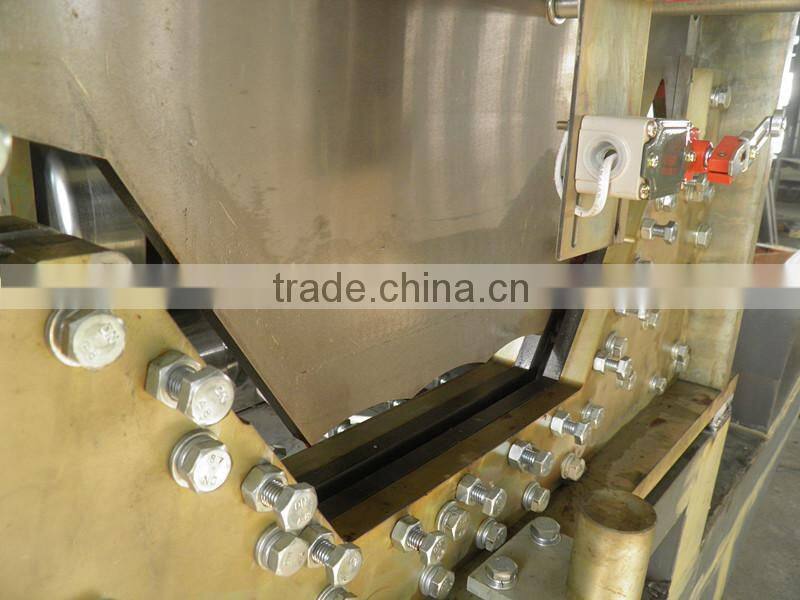

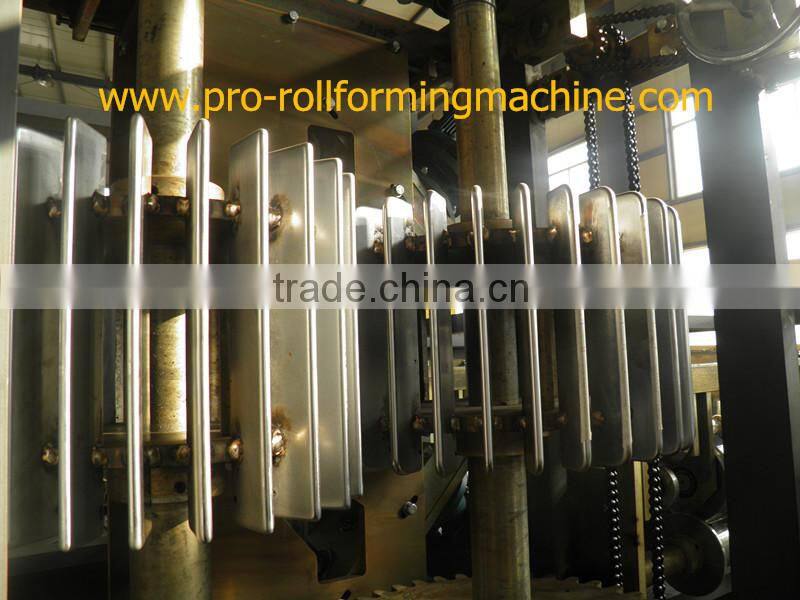

Picture of detail

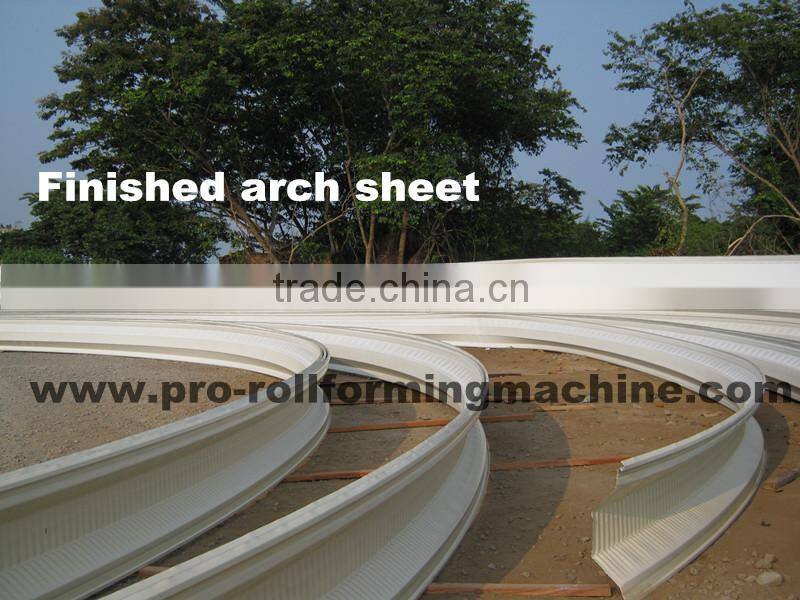

Picture of project

Model list
Model


  | Feeding width (mm)  | Effective width (mm)  | Use ratio  | Rolling thickness (mm)  | Capable width  | Suitable width  |
PR-600-305  | 600  | 305  | 50.8%  | 0.6-1.5  | 4-28  | 4.8-22  |
PR-600-300  | 600  | 300  | 50%  | 0.6-1.5  | 4-30  | 4.8-24  |
PR-914-400  | 914  | 400  | 43.7%  | 0.8-1.5  | 4-40  | 12-25  |
PR-914-610  | 914  | 610  | 66.7%  | 0.8-1.5  | 4-38  | 6-32  |
PR-914-650  | 914  | 650  | 71.1%  | 0.8-1.5  | 4-26  | 6-30  |
PR-914-700  | 914  | 700  | 76.5%  | 0.8-1.5  | 4-22  | 6-22  |
PR-914-750  | 914  | 750  | 82%  | 0.8-1.5  | 4-14  | 6-20  |
PR-1000-610  | 1000  | 610  | 61%  | 0.9-1.5  | 5-42  | 10-32  |
PR-1000-680  | 1000  | 680  | 68%  | 0.9-1.5  | 5-38  | 10-30  |
PR-1000-700  | 1000  | 700  | 70%  | 0.9-1.5  | 5-30  | 10-20  |
PR-1000-750  | 1000  | 750  | 75%  | 0.9-1.5  | 5-24  | 10-18  |
PR-1000-800  | 1000  | 800  | 80%  | 0.9-1.5  | 5-18  | 10-16  |
PR-1200-800  | 1200  | 800  | 66.7%  | 1.2-1.5  | 6-42  | 7.5-35  |
PR-1220-800  | 1220  | 800  | 65.5%  | 1.2-1.5  | 6-45  | 7.5-35  |
PR-1250-800  | 1250  | 800  | 64%  | 1.2-1.5  | 6-50  | 7.5-35  |
Packaging&Shipping
Naked by vessels 40HQ*1
Company information

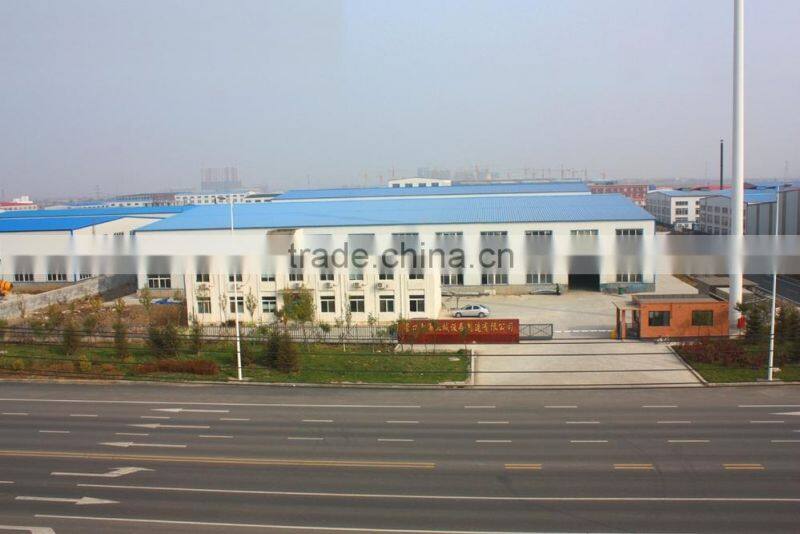

Our company
Q: Are You the factory or trade company?
A:We are the factory,found in 2000
Q: Can you make the machine according to my demand?
A: Yes. we have professional team and development personnel can plan to the suitable designs you need.
Q:What's the MOQ?
A:One set, more should be discount.
Q:What's the type of payment?
A:T/T(30% T/T in advance,70% T/T before shipment )
Q:Why we choose you of all the same industry?
A:Our company have competitive quality and price in the whole industry,welcome to you visit any time.
Q: Do you have longlife after-sales service support?
A: Yes, our machine warranty period is 13 month, and support lifelong service.
