PRO arch building material making machine for roof building

PRO arch building material making machine for roof building

l Machine picture:

l Technical Parameter of PR-914-610

Dimension : 8900mm X 22300mm X 2300mm (Single axle & 4 tires)

Total Weight : About 8Ton

Bending Leaf : 10mm thickness, processed by CNC

Cutting blade : 12CrMoV material, Heat treatment

Cutting type : Mechanical Cutting

Forming type: Roll-formed and length-set cutting.

Total motor power : 19.7KW

                                  Main Motor Power : 7.5KW

                                  Bending Power : 3.0KW+1.5KW x 2

                                  Cutting Power : 4.0KW

Seaming Power: 1.1KW+1.1KW

Roller Material : 45# high-quality steel, quenched HRC 55~65, hard chrome plating.

Shaft Material : 45# high-quality steel, galvanized

Bearing : Made in Harbin

Stand of molding : 13+1

Rolling material:  Width : Feeding width :914mm

                                          Effective width : 610mm

                             Using rate : 66.7%

                             Thickness : 0.8-1.5mm

Working Speed : Forming Part : 15m/min

                              Bending Part: 13m/min

                              Seaming : 16m/min

Suitable  width : 12~42m

De-coiler : Inner-diameter of coil : 450mm ~ 650mm,

                   Max width of coil : 914mm ~ 934mm      Load : 10Ton

l Design drawing

• Picture of detail

• Picture of project

• Model list

• Picture of after-sell service

Yingkou Professional Roll Forming Machine Co., Ltd.is a professional manufacture of roll forming machine. We can produce many kinds of different models equipments: single axle, double axles, three axles, floor type, whole hydraulic type etc. PLC, servo motor and generator provide software support. We can instruct clients to do projects, offer technical support for clients, including project design, drawing supplied and engineer supplied. Clients who purchase our equipments can create largest profit space.

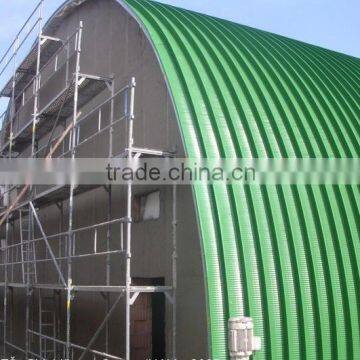

Our arch sheet forming machine can directly by produced on worksite, effectively lowering the cost. The project is widely used in large-scale and mid-scale industrial construction, such as factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre and so on.
