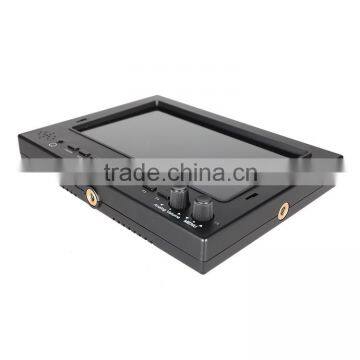

Peaking focus assist image freeze function 7 inch samll HDMI portable lcd cheap display led monitor
- 10000 Piece / Pieces per Month
- xiamen
- T/T
You May Like
-
7 inch tft screen sdi input and output broadcast HD field dispaly cheap lcd monitor
-
Small 5 inch portable screen SDI input and output sunshade readable mirror image histogram function monitor tv
Quality Choice
-
HDMI SDI input 3.5 inch peaking focus assist on camera EVF for broadcasting and fi
-
3.5" sdi electronic viewfinder with peaking focus assist F970 battery plate
-
3.5 inch electronic viewfinder sdi hdmi input for pro video display
-
SEETEC small and portable 3.5 inch lcd electronic view finder with SDI HDMI input
Product Details
| Products Status | Stock | Application | Other, 7 hd sdi monitor | |
| Screen Size | Other, 7" | Response Time | 20ms | |
| Brightness | Other, 600cd/m | Interface Type | HDMI, Other, HDMI, SDI | |
| Contrast Ratio | 800:1 | Resolution | Other, 1024X600 | |
| Widescreen | Yes | Panel Type | IPS | |
| Pixel Pitch | 0.05(H) x 0.15 (V) mm | Brand Name | SEETEC | |
| Model Number | ST702HSD | Place of Origin | Fujian, China |
Product Description
Peaking focus assist image freeze function 7 inch samll HDMI portable lcd cheap display led monitor
SEETEC new release ST-702HSD 7-inch high-resolution monitor, with the main demands of premium, lightweight, clear, full functions. It is with 450cd/m2 brightness, 700: 1 high contrast ratio and 1024x600 resolution HD images, and it also provides a wide range of signal inputs,HDMI, SDI input and output, terminals to facilitate flexible use for the director. Complete Focus Assist, warning feature provides photographers to accurate diagnostic tool, to make wonderful film without defects. The setting knob and six shortcut keys make the monitor adjustment and settings more quickly.
| Description | 7" Pro-Broadcast HD Monitor | ||
| Model | ST-702HSD | ||
| Screen Size | 7'' | ||
| Panel Type | TFT LCD | IPS LCD | |
| Resolution | 1024x600 | ||
| Dot pitch | 0.05(H) x 0.15 (V) mm | ||
| Aspect ratio | 16:9 | ||
| Brightness | 450cd/m² | 600cd/m² | |
| Contrast | 700:1 | 800:1 | |
| Response time | 10ms | 20m | |
| Viewing Angle | 75°/75°(L/R) 70°/75°(U/D) | 85°/85°(L/R) 85°/85°(U/D) | |
| Backlight | LED | ||
| Video Format | PAL/NTSC | ||
| Inputs | HDMI,SDI | ||
| Outputs | HDMI,SDI | ||
| HDMI Support Mode | 480i / 576i / 480p/576p | ||
| 1080i (60/59.94/50) | |||
| 720p (60/59.94/50/30/29/25/24/23.98) | |||
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF) | |||
| SDI Support Mode | ITU-R BT.656 | 576i | |
| SMPTE-125M | 480i | ||
| SMPTE-274M | 1080i(60/59.94/50) 1080p(30/29.97/25/24/24sF/23.98/23.98sF) | ||
| SMPTE-296M | 720p(60/59.94/50/30/29/25/24/23.98) | ||
| SMPTE-424M | 1080i(60/59.94/50) 1080p(60/59.94/50) | ||
| Power Consumption | ≤9W | ||
| Input Voltage | DC6V-24V | ||
| working Temperature | -20℃~50℃ | ||
| storage Temperature | -30℃~65℃ | ||
| Install Way | 1/4"-20 Thread Socket(All 4 Sides) | ||
| Unit Size | 194L × 148W ×28.5H(mm) | ||
| 194(L)x150(W)x62(H) mm With close sun shade | |||
| Unit Weight | ≈521 g(Contains F970battery plate) | ||
| ≈669g(Contains F970 battery plate and sun shade) | |||
1. Camera 5D II Mode
2. Peaking Focus Assist
3. Check Field (Mono/Red/Green/Blue)
4. Centre Marker
5. Screen Marker
6. Color Tempt. Adjustment
7. 4:3 &16:9 Image Adjustment
8.Pixel to Pixel
9.Image Flip
10. Knob Menu Selection, Volume Control
11. Feature Options Shortcuts Panel Operation, Simple and Efficient
Innovational OSD Operation
ST-702HSD double function knobs are SEETEC's exclusive technology feature, which will bring you more convenient and rapid operation feeling.
Inputs and Outputs
ST-702HSD is with SDI and HDMI inputs and outputs. Since the monitor is all digital, it shows the purest and cleanest signal directly on the LCD panel. To remove the legacy analog inputs and circuits makes your image as clean as possible
Gift&neutral box 10 pcs/carton
Delivery Information:
SEETEC strives to get all orders out as quickly as possible after QC Dept fully test them!
Shipping Method:
By Express: Fedex,DHL,EMS,TNT,UPS,
By Logistics: by air&sea
Shipping Time:
From Monday to Saturday 8:00am-17:30pm
Shipping Address:
.If by paypal, Please note items will only be shipped to verified users with confirmed shipping addresses
.If by T/T, shipping address as communicate
1.Powerfull Research&Development Experience
2.OEM&ODM Ability
3.Strict QC TEST Control
4.EASY & FAST Communicate
5.Responsible After Service
