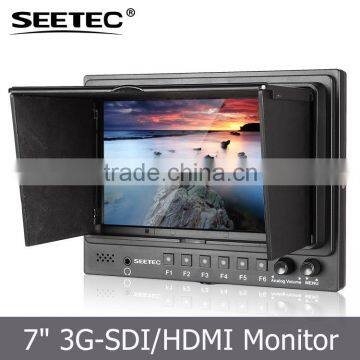

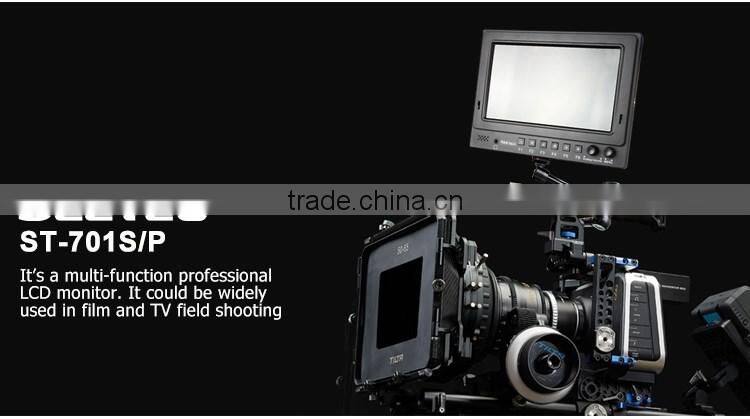

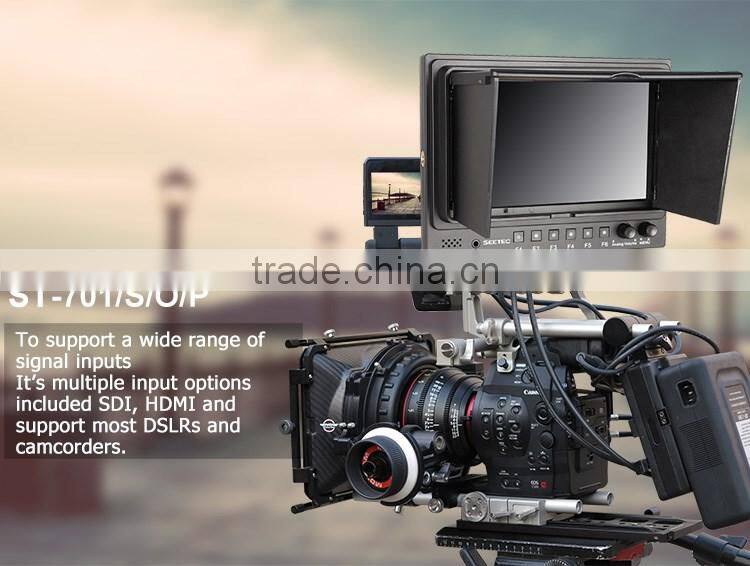

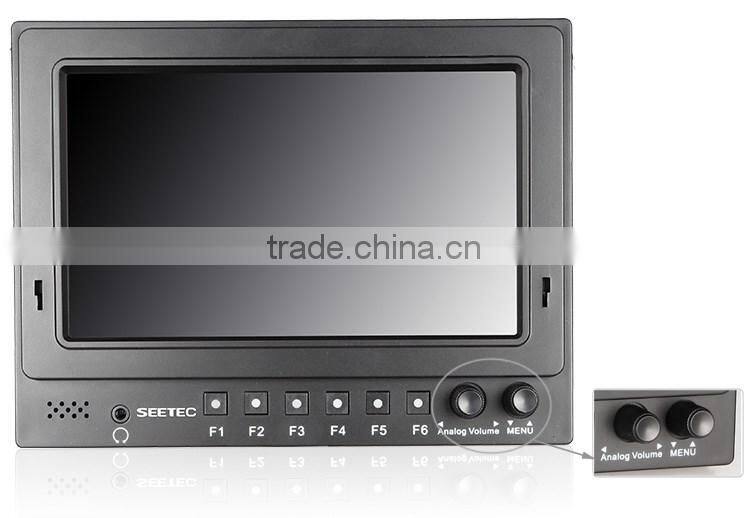

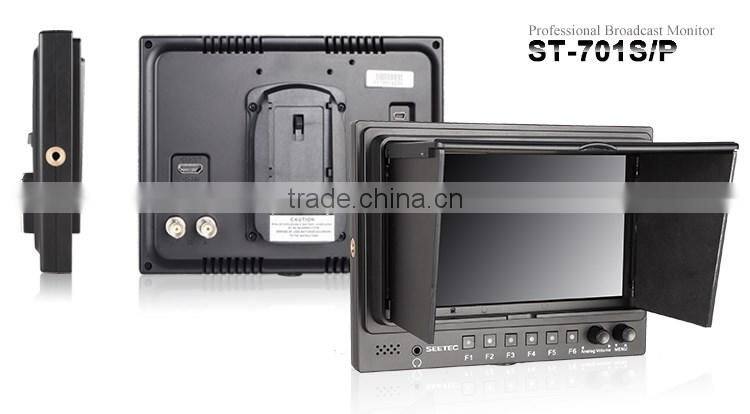

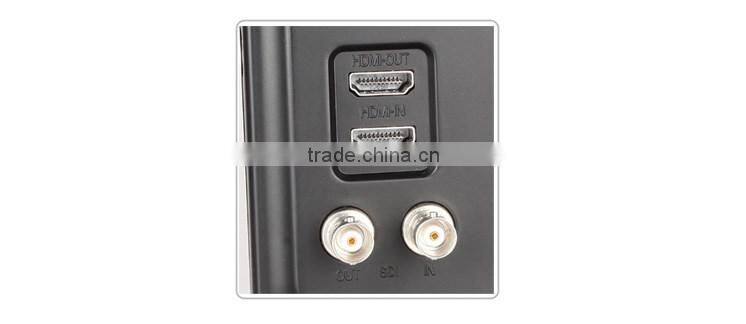

7"broadcast Video Display HDMI Input and Output Resolution 1024X600 1080p Sdi Monitor

1. Peaking Focus Assist (Red, Yellow, Blue outline)
2. False Colors
3. Embedded Audio
4. Nine-grid Image (Zoom one of the images to realize full screen)
5. Histogram
6. Exposure (Zebra)
7. Check Field (Mono, Red, Green, Blue)
8. Underscan/ Overscan
9. Internal Colorbar
10. Centre Marker
11. Screen Marker
12. Zooming (1.4x; 5x; 10x)
13. Image Freeze & Flip (U/D, L/R)
14. Pixel-to-Pixel Mode
15. Time Code Display
16. Color Tempt. Adjust

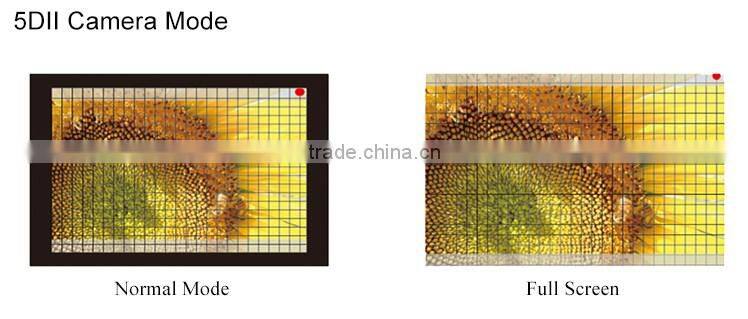

17. Camera 5D II Mode

 Peaking Focus

The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture, which is most effective when the subject is properly exposed and contains enough contrast to be processed. The Peaking Focus of ST-701/S/O/P is (Red,Yellow,Blue-outline) based on real view and Mono background.

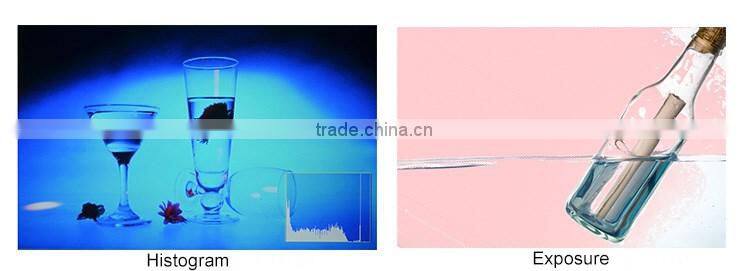

Histogram

The Brightness Histogram is a quantitative tool to check the picture brightness. The feature shows the distribution of brightness in an image as graph of brightness along the horizontal axis (Left:Dark, Right:Bright) and a stack of the number of pixels at each level of brightness along the vertical axis.

Exposure

The Exposure is used to assist in exposure adjustment in the mode of Zebra Pattern.

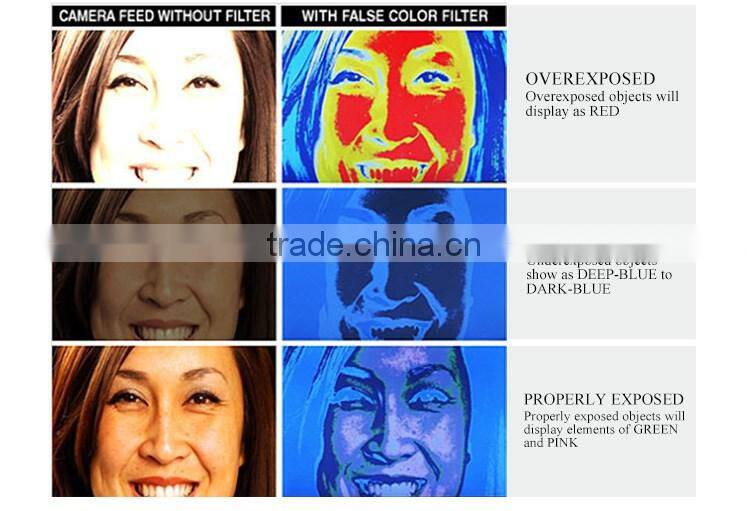

False Color

False color can be intuitive observation and calculation in the scene lighting levels, to make the brightness or the lighting value mapping for the display brightness of false color, from the darkest to the brightest, in turn display blue, cyan, green, yellow, orange and red.

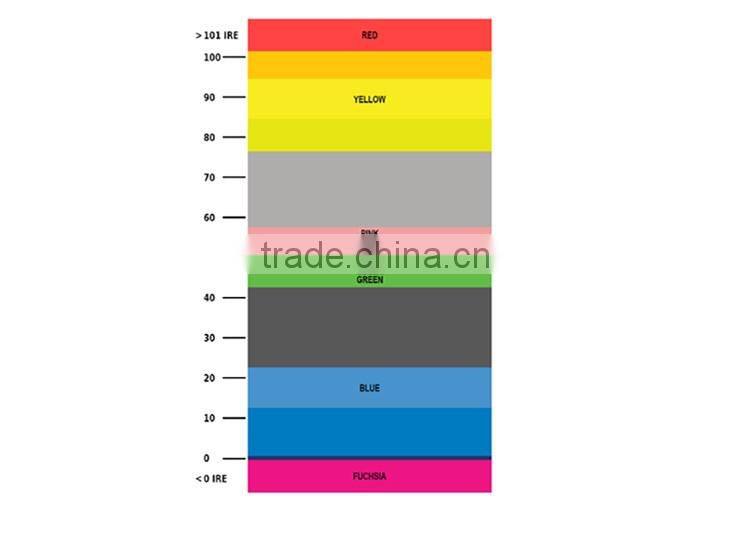

False Color Key

To best utilize this feature, you must understand the color chart and have a basic understanding of camera exposure. Normally, when shooting subjects like people, it is common practice to set exposure of faces to the equivalent of approximately 56 IRE. The False Color filter will show this area as the color PINK on the monitor. Therefore, as you increase exposure (open the IRIS), your subject will change color as indicated on the chart: PINK, then GREY, then a few shades of YELLOW. Overexposed subjects (above 101 IRE) on the monitor will be shown as RED. In addition, underexposed subjects will show as DEEP-BLUE to DARK-BLUE, with clipped-blacks indicated with a FUCHSIA-like color. Lastly, the color GREEN is used to indicate elements of the image that are approximately 45 IRE. This represents a "neutral" or "mid-level" exposure commonly used for objects (not people)

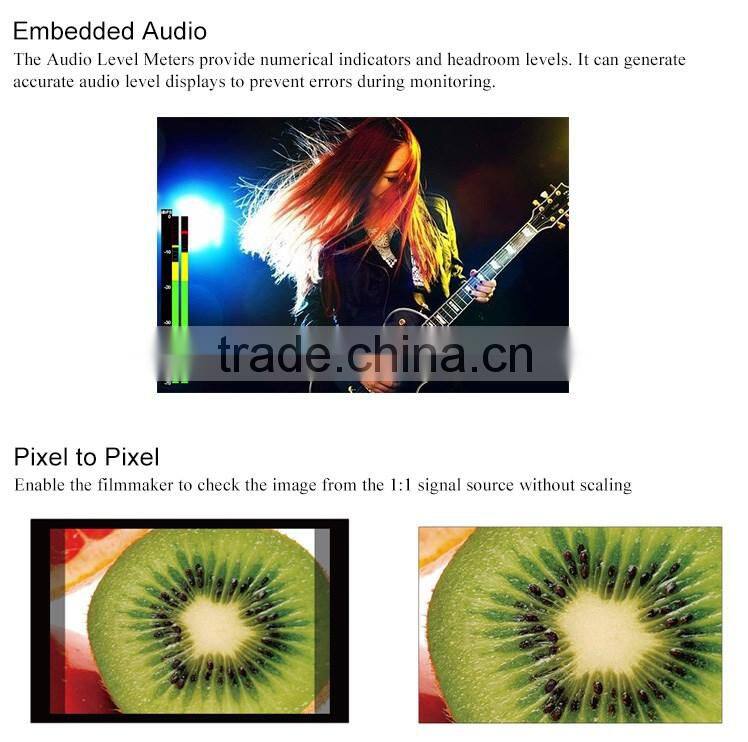

Embedded Audio

The Audio Level Meters provide numerical indicators and headroom levels. It can generate accurate audio level displays to prevent errors during monitoring.

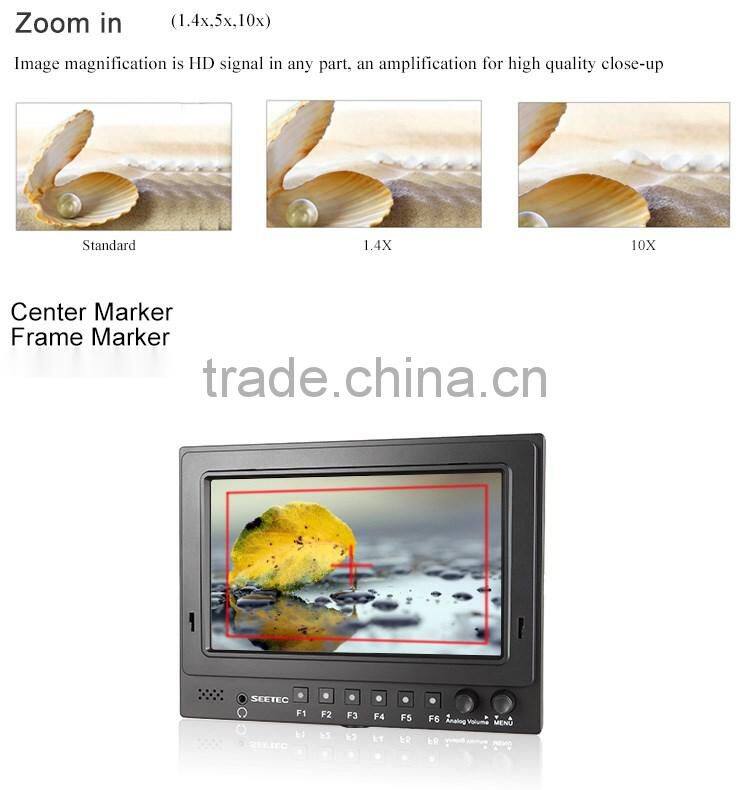

Zoom in

Image magnification is HD signal in any part, an amplification for high quality close-up

Gift&neutral box 10 pcs/carton
