IPS Panel Wide View Angle Build-in HDMI to SDI Conversion Output 7" Dslr Field Monitor for Film Shooting IPS Wide View Angle

IPS panel wide view angle build-in HDMI to SDI Conversion output 7" dslr field monitor for film shooting IPS wide view angle

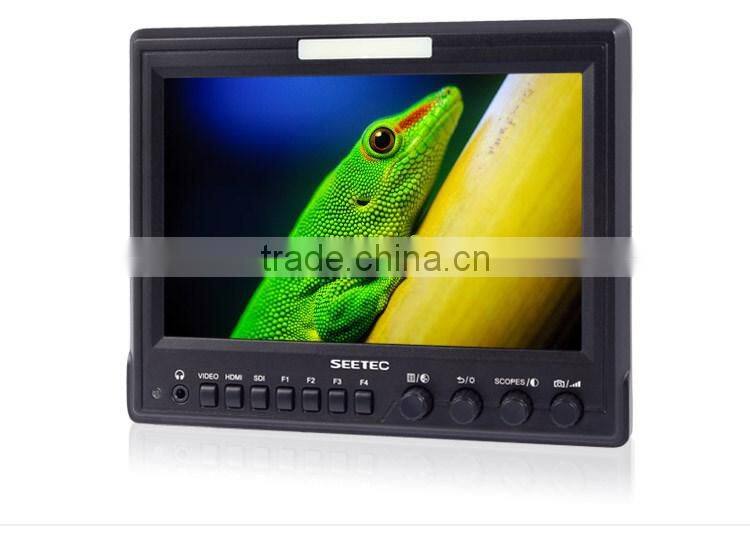

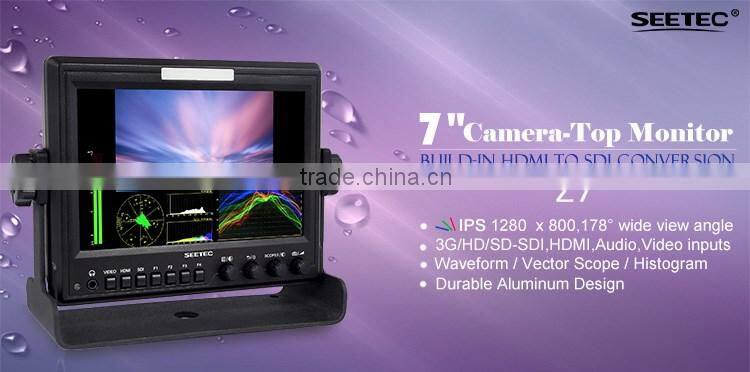

1. The SEETEC 7" Pro IPS LCD Monitor with Scopes is a compact battery powered field monitor with a 16:10 native aspect ratio, and a wide variety of signal scopes that allows you to customize your display to suit changing needs depending on the job.

2. It features a mode that tiles histogram, audio bar, vector, RGB histogram, and YUV waveform in a border surrounding your video image, allowing you an unobstructed view of your video and scopes at the same time.

3. The IPS panel features a native 1280 x 800 resolution that scales to fit HD and SD images, in NTSC and PAL, over SDI and HDMI connections.Z7 Build-in HDMI to SDI Conversion,is used to broadcast and deliver the HDMI camera video.

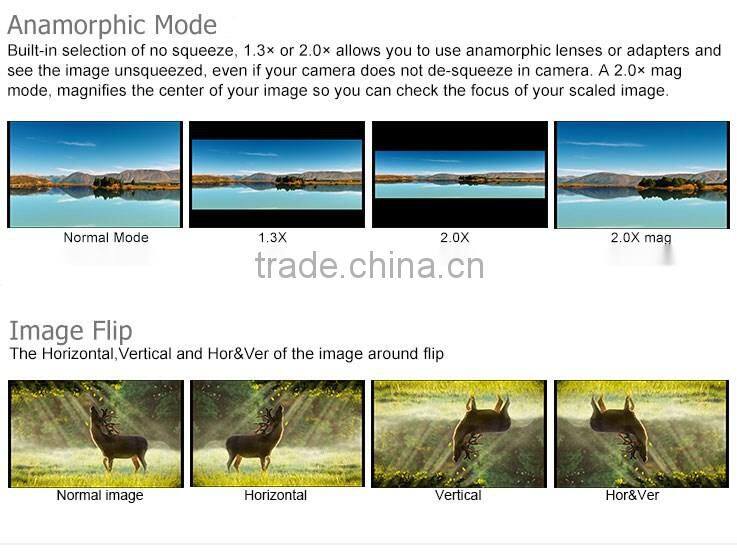

4.The monitor features two separate anamorphic modes , a 1.33 and a 2.0x squeeze, allowing you to view your footage unsqueezed, even if your camera doesn't unsqueeze the output.

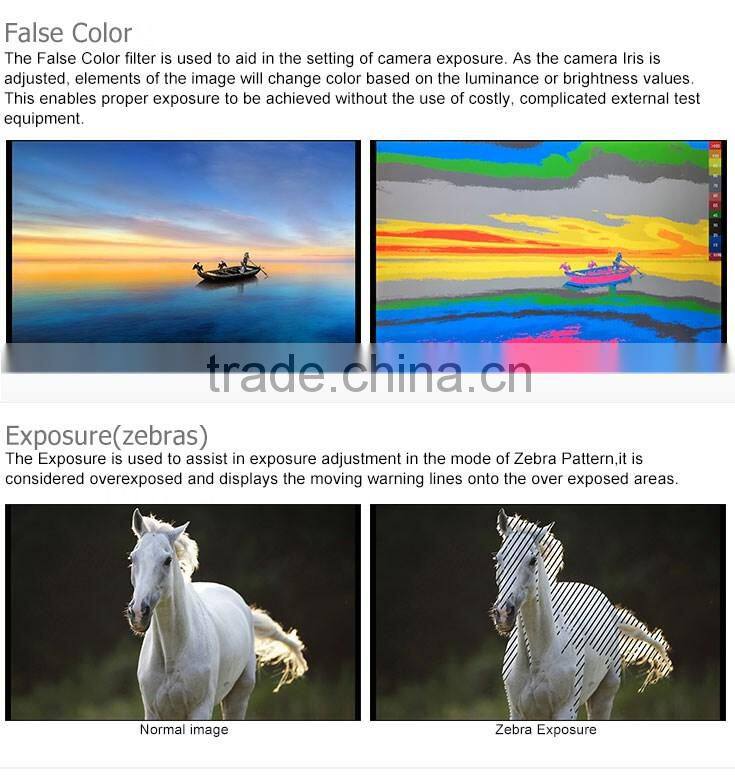

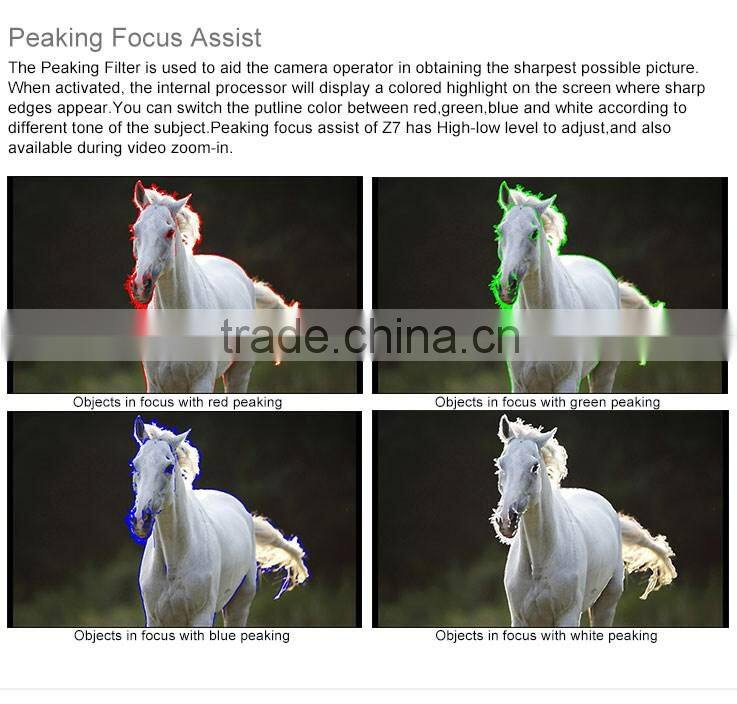

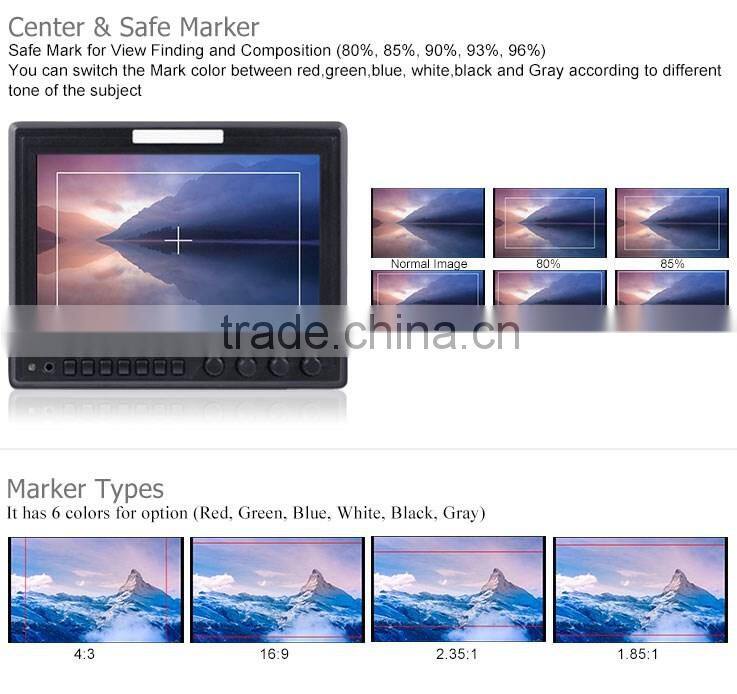

5.The monitor provides a 178° viewing angle without noticeable color or contrast shift. You use the front mounted knobs to select which scopes you wish to display, as well as choose from a variety of safe area markers as well as peaking and zebras. You can select to display audio level meters on the side of the monitor if you wish, or monitor the audio from the built-in speaker or headphone jack.

6.The monitor is powered from 4-pin XLR connector, or 12 VDC coax input with the included power adapter,and Z7 has flexible battery systerm that supports F970, LP-E6 ,D28,Anton,Sony V mount plates of your choice.

1280X800 IPS HD Panel

With the Z7’s 7-inch 1280 X 800 IPS HD panel what you see is truly what you get! The IPS HD Panel delivers near perfect viewing angles outputting crisp, clear shots on the field, which means less time in the editing room. The Z7’s IPS HD Panel is the tool of choice for high quality color reproduction.

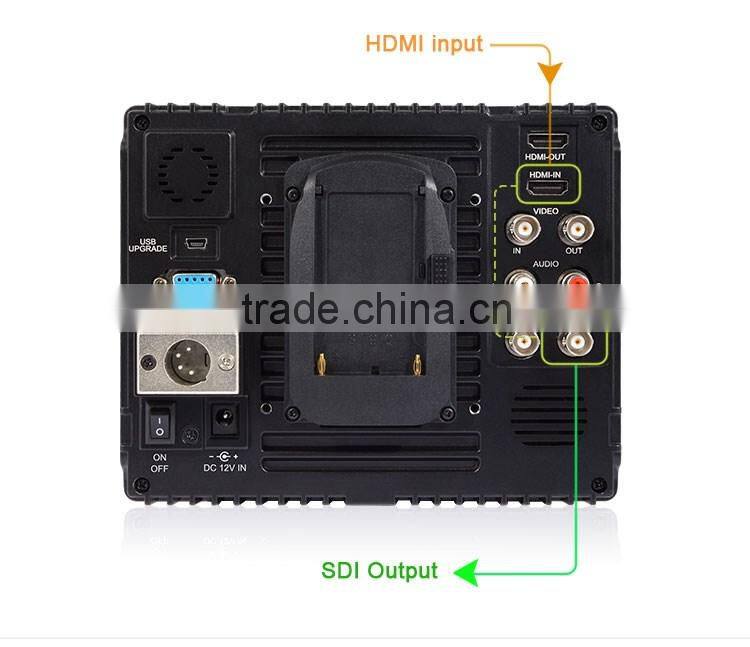

Build-in HDMI to SDI Conversion

The build-in conversion is used to broadcast and deliver the HDMI camera video.

Video Analysis Assistant Pattern

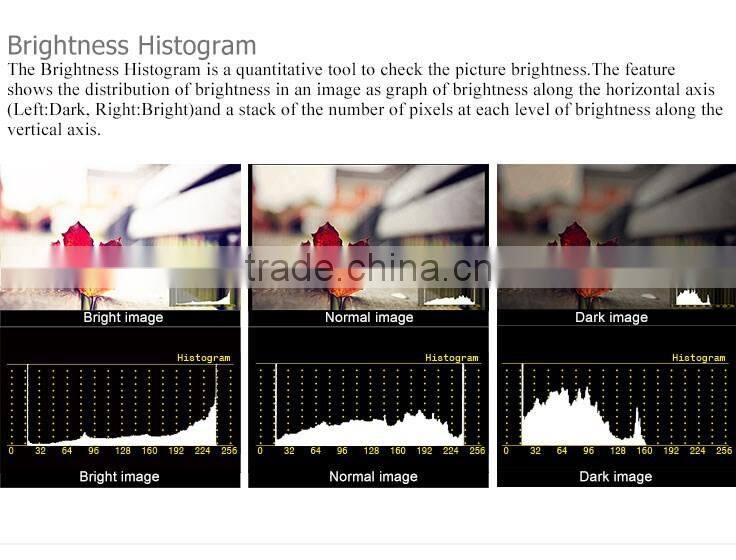

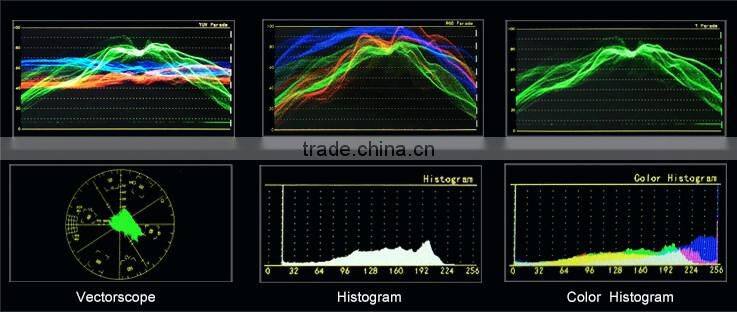

Waveform / Vector scope / Histogram

Z7 supports Waveforms display under both SDI and HDMI, including RGB,YUV,Y channels.The Vector scope and R/G/B histogram can be switched on/off independently to the waveforms,and support All scope Mode.
