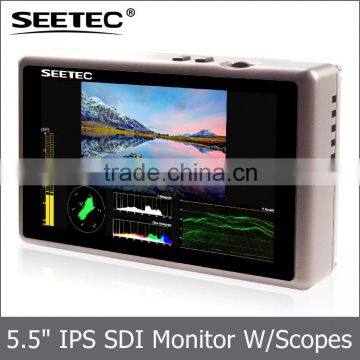

The SEETEC G55 has a bright 5.5 inch Full HD 1920 x 1080 high resolution display so you don't have to carry extra on set monitors and scopes. You can mount it on cameras as a large monitor for the crew, hand it to the cinematographer for composing the shot, or set it in front of the director to review each take. The screen has a wide 160º viewing angle, which means it’s easy to see, even when several crew members are watching. Plus, the image auto rotates so no matter which way you set it up your cables always plug into the side you need them. You can view any SD or HD format over SDI and HDMI connections.

The most effective tool for framing, focusing and exposing your image,It features a mode that tiles histogram, audio bar, vector scope, RGB histogram, and YUV waveform in a border surrounding your video image, allowing you an unobstructed view of your video and scopes at the same time. Titanium Metal Frame Design.Light weight, durable construction.You get a heavy duty metal that is comfortable enough to hold in your hand and still light enough to be mounted on even the smallest rig.

Multi-format Input/Output

Connect to professional cameras, camcorders and DSLR’s

The compact design of the SEETEC G55 includes HDMI and 3G-SDI inputs so you can record from virtually any video camera or DSLR. The loop through output lets you monitor on larger HD broadcast displays or HDMI projectors. Audio can be monitored from the 3.5mm stereo headphone jack and for studio shoots, the DC7-24V universal power supply gives you continuous operation.

3-color Tally Light

Mini USB input signal

There are front TALLY lights for each screen, with 3 colors display(Red,Green,Yellow), and controlled via Mini USB ports on the rear panel.

1. Waveform (RGB, YUV, Y (Luminance)

2. Vector Scope

3. Color Histogram

4. Histogram

5. Focus Assist (Red, Green, Blue, White four color optional highlight over parts of the image in focus)

6. Embedded Audio Meter

7. False Color

8. Zebra Exposure

9. Internal Colorbar

10. Squared Segmentation

11. Camera Mode

12. Scan Mode (Auto, Over Scan, Full Screen)

13. Real time video zoom-in (Standard, 4x, 9x,16x)

14. Anamorphic Mode (1.3x, 2.0x, 2.0x mag)

15. Pixel to Pixel

16. Center Marker

17. Safe Area (80%, 85%, 90%, 93%, 96%)

18. Marker Type (16:9, 4:3, 2.35:1, 1.85:1)

19. Marker Color (Red, Green, Blue, White, Gray, Black)

20. Check Field (Gray/ Red/ Green/ Blue)

21. Image Flip (Horizontal, Vertical, Hor&Ver)

22. Image Freeze

23. Image Flip (H, V, H/V)

Waveform

This essential feature assists with the calibration of professional video cameras. It shows the overall brightness of the image assisting the video professional in correcting exposure. The waveform feature also checks the evenness of the lighting when lighting a chromakey or background.

Vectorscope

Vector scope shows how saturated the image is and where the pixels in the image land on the color spectrum. It can also be displayed in various sizes & positions, that allows users to monitor color gamut range in real time.

Color Histogram

Color histogram is a graphical display of the distribution of tones, shows the red, green, and blue channels in overlay histogram . Suitable for HD-SDI and HDMI signal monitoring.
