Liquid Detergent Filling Machine
- Any port in China
You May Like
Product Details
| Place of Origin | Hunan, China | Brand Name | Fucheng | |
| Condition | New | After-sales Service Provided | Overseas service center available |
Product Description
Liquid Detergent Filling Machine
1. Application
This filler is of wide applicability and can be used for dosing filling of creams and liquids (20-2000cP) in the fields of daily chemistry, food and beverage, pharmacy, chemistry and so on.
2. Technical Parameters
| Type | GFA-100 | GFA-300 | GFA-500 | GFA-1000 |
| Filling volume (ml) | 10-100 | 20-300 | 20-500 | 30-1000 |
| Filling accuracy (FS) | ±1% | ±1% | ±1% | ±1% |
| Production capacity (cycle/min) | 1-25 | 1-25 | 1-25 | 1-25 |
| Applicable tolerance (m³/min) | ≥0.1 | ≥0.1 | ≥0.1 | ≥0.1 |
| Applicable pressure(Mpa) | 0.4-0.9 | 0.4-0.9 | 0.4-0.9 | 0.4-0.9 |
| Exterior sizes (mm) | 850×280×350 | 850×280×350 | 850×280×350 | 950×280×450 |
| Net weight (kg) | 40 | 40 | 40 | 45 |
3. Performace
This machine is of reasonable structure, reliable performance and accuratequantification. It applies pneumatically-driven structure. The shell and all the parts connected with filling materials are made of stainless steel (SS304 is used for standard ones and SS316 can also be customized). The inner walls of main parts are mirror-polished in roughness Ra≤0.2-0.4μm, which conforms to the requirements of GMP certification. Therefore, it is rustless and corrosion resistant.In addition, the user can adjust the filling volume andspeed within the type limitation as required

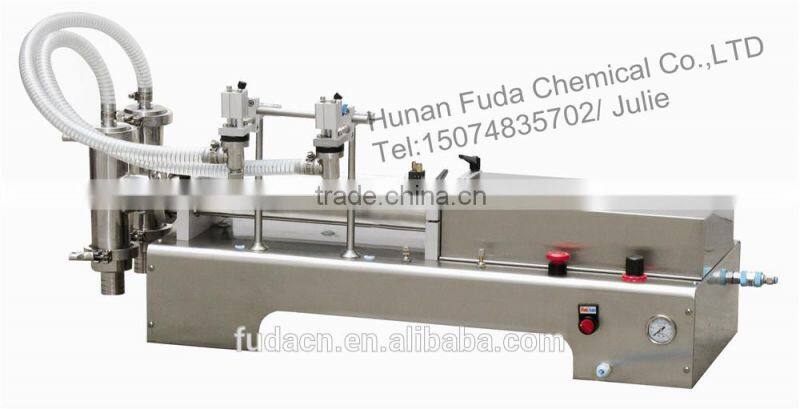

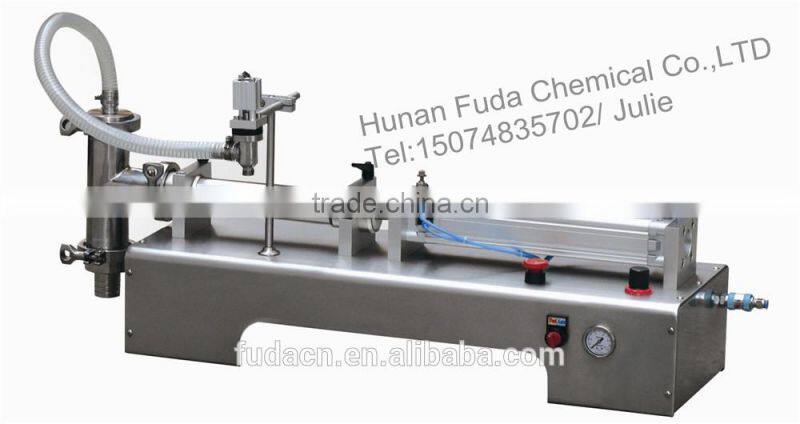

4. Machine picture
