pt100 rtd sensor pt100 thermal resistance
- Shanghai
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Chongqing, China | Brand Name | rtd | |
| Model Number | rtd pt100 | Usage | Industrial | |
| Theory | Temperature Sensor |
Product Description

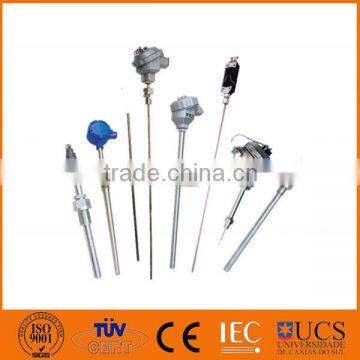

pt100 rtd sensor pt100 thermal resistance
rtd introduction
WZ series of assembing type industrial thermal resistances are designed and produced according to IEC standard. They normally work as a temperature sensor. They are used together with temperature displays and controls to detect and control the temperature of gas, liquid or solid surface. The working range is from -200ºC to 800ºC. A WZ thermal resistance contains temperature sensor, fixing parts and junction box.
RTD PT100 Measuring Range & Tolerance
Type | Graduation | Measuring Range °C | Accuracy | Tolerance |
WZPK | Pt100 | -200~+500 | Class A | ±(0.15+0.002|t|) |
Class B | ±(0.30+0.005|t|) |
RTD PT100 Thermal Response Time
Sleeve Tube Diameter(mm) | Thermal Response Time |
3 | ≤3 |
4 | ≤5 |
5 | ≤8 |
6 | ≤12 |
8 | ≤15 |
Remarks: t is absolute temperature value actually tested with thermal sensor.
RTD pt100 Model Selection
Type | Graduation | Measuring Range | Accuracy Class | Mounting & Fixing Device |
WZPK-120 |
Pt100
|
-200 ~ +500
|
A or B
| without Fixing Device
|
WZPK-121 | ||||
WZPK-122 | ||||
WZPK-123 | ||||
WZPK-124 | ||||
WZPK2 -120 | ||||
WZPK2 -121 | ||||
WZPK2 -122 | ||||
WZPK2 -123 | ||||
WZPK-220 | Threaded Connector with Fixed
| |||
WZPK-221 | ||||
WZPK-222 | ||||
WZPK-223 | ||||
WZPK-224 | ||||
WZPK2 -220 | ||||
WZPK2 -221 | ||||
WZPK2 -222 | ||||
WZPK2 -224 | ||||
WZPK-320 | Threaded Connector With Movable | |||
WZPK-321 | ||||
WZPK-322 | ||||
WZPK-323 | ||||
WZPK-324 | ||||
WZPK2 -321 | ||||
WZPK2 -322 | ||||
WZPK2 -323 | ||||
WZPK2 -324 |
