Product Details
| Place of Origin | Chongqing, China | Brand Name | rtd | |
| Model Number | WZP | Usage | Industrial | |
| Theory | Temperature Sensor |
Product Description

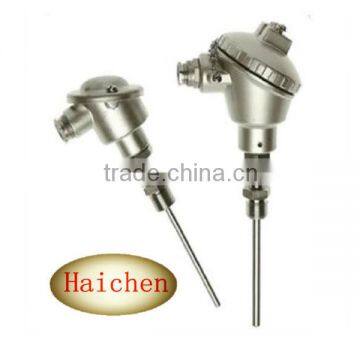

Pt100 RTD &Platinum Resistance Sensor
1.pt100,pt1000 platinum thermal resistance
2.assembly and sheathed rtd temperature sensor
3.temp.-200 to 600C
ding typemount be type
5.pobe water-roof
6.Probe: 6*50mm
7.3-wire 6ft teflon coating ss braided
8.Stripped end
9 ISO9001 approval
RTD models and specifications
Calibration | Nominal resistance(0°C) Ω | Temperature measuring range °C | tolerance | R100/ Ro w |
Pt10 | 10 | ceramic elements:-200 ~ 600 mica elements: -200 ~ 420 | ClassA: ±(0.15+0.2%|t|) ClassB: ±(0.3+0.2%|t|) | 1.3851 |
Pt100 | 100 | |||
Cu50 | 50 | -50 ~ 100 | ±(0.3+0.6%|t|) | 1.4280 |
Cu100 | 100 |
RTD Probe materials
Diameter of protective tube(mm) | Material of protective | Thermal response time(s) | |
Platinum resistance | 12 | Carbon steel:20 Stainless steel:0Cr18Ni12Mo2Ti;1Cr18Ni9Ti | 30~90 |
16 | |||
Taper protective tube | Stainless steel :1Cr18Ni9Ti | 90~180 | |
Copper resistance | 16 | Brass:H62 Carbon steel:20 Stainless steel:1Cr18Ni9Ti | <180 |
RTD probe specifications
Diameter of protective tube(mm) | Length L |
12 | 225,250,350,400,450,550,650,900,1150 |
16 | 300,350,450,500,650,900,1150,1650,2150 |
Taper protective tube | 225,250,300,400 |
