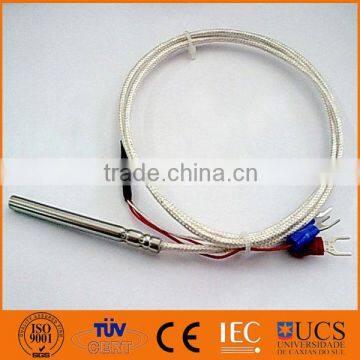

China 3 Wire RTD Sensor Platinum Resistance RTD PT100 with PTFE Coat Cable

   China 3 Wire RTD Sensor Platinum Resistance RTD PT100 with PTFE Coat Cable

This exclusive design provides a practically unbreakable connection between the leadwire and the probe lead. The T3 epoxy-filled transition is supplied with 24 AWG stranded silver-plated copper Teflon-insulated wire with Teflon overall as standard. Silicone impregnated fiberglass insulation is also available.

T4 termination provides a stainless steel overbraid for maximum flexibility and abrasion resistance. The overbraid is embedded in the epoxy-filled material to ensure mechanical strength. Standard extension leads are 2 ft. long. Longer leads are available on request.

Specification

1.Model:pt100;
2.Graduation Mark:pt100;(We also provide  KN,J,T,E type)
3.Core wire number:Simplex type( 2 cores);
4.Material of the outer protection tube:A-304/321(0Cr18Ni9) ;
5.Diameter of outer tube:1.0mm(Diameter from 0.5mm to 8.0mm available)
6.Thickness of outer tube:0.15mm;
7.Inner core element:NiCr/NiSi;
8.Diameter of core wire:0.18mm;
9.Length:100m;( can be customized);
10.Compensation wire:1500mm;( can be customized);
11.Measuring junction shape:cylinder, ring or customized
Package:1pc/bag,30bags/carton

Features:
Small external diameter, quick heat response, may be bent, long lifetime, fine air-tightness, wide thermometric scope, high voltage resistant, anti-vibration, narrow mounting pipeline, may be used under bending conditions.

All products can be customized only if with your specification, any comments will be appreciated.
