Home > Products > High Temperature Resistance Insulation Tape > Electric Insulating Glass Fiber Woven Tape

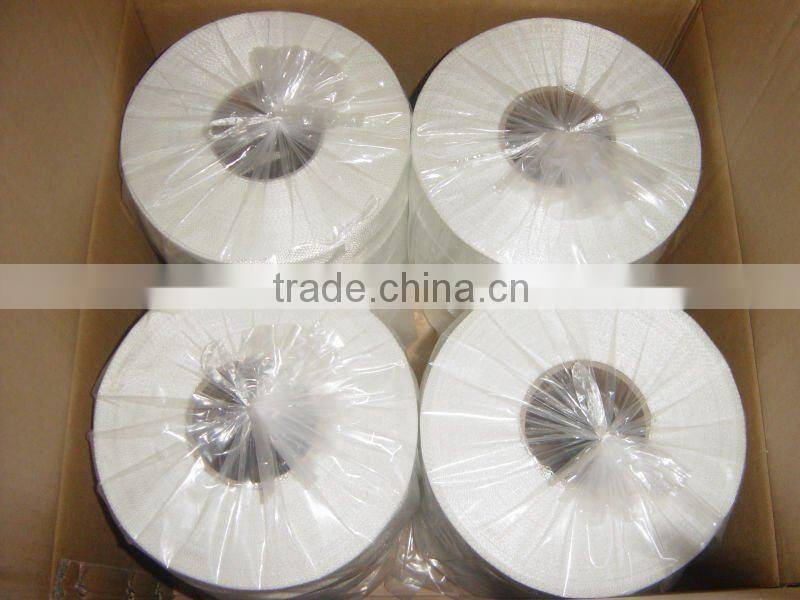

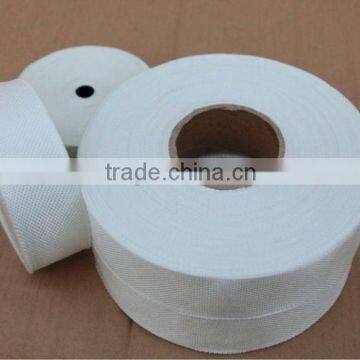

Electric Insulating Glass Fiber Woven Tape

FOB Price

US$ 0.02 - 0.08 / Meter

2000 Meters(Min. Order)

Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	Haiying
Model Number	JZ,HY	Type	Insulation Tape
Material	Other, Fiberglass, glass fiber	Application	Other, transformer,Motor
Tensile Strength	≥300N

Product Description

Specifications

1> MOQ:2000M
2> Supply Abilities: 1500000M/Month
3>ISO9001:2000
4> EXW price

Glass Fiber Banding Tape for Transformer:

E-glass insulation tape features good inductivity,high-temperatrue resistance, becoming necessary binding materials for electrical machinery and appliance. The tapes can be used on different types of motors and generators, resulting in reliable insulation performance, long working life and reducing the volume and the weight.
E-glass fiber without wax net tape has the advantages of good insulation,high-temperature resistance,strong pull while banding and excellent impregnation for resin.

It is used as ideal banding material for transformer manufacture.

1.specification of E-glass tape

style

Thickness
(mm)

Width
(mm)

Yarn

(tex * strand)

Construction
(ends/cm)

Breaking strength
(N/10×100mm)

Warp

Filling

Warp

Filling

ET-60

0.06

10,15

20,25

30,35

40,50

6*2

27±1

22±1

≥325

ET-80

0.08

12*2

6*2

27±1

22±1

≥500

ET-100

0.10

12*2

25±1

11±1

≥500

ET-120

0.12

12*2

24*1

25±1

11±1

≥620

ET-180

0.18

12*4

12*2

25±1

10±1

≥750

ET-200

0.20

12*6

12*4

25±1

10±1

≥875

ET-300
(Directional)

0.30

33*6

33*4

25±1

8±1

≥1500

*Special specification are available upon request.

2. Specification of E-glass Net Tape

style	Thickness (mm)	Width (mm)	Yarn (tex * strand)		Construction (ends/cm)		Breaking strength (N/25*200mm)
style	Thickness (mm)	Width (mm)	Warp	Filling	Warp	Filling	Breaking strength (N/25*200mm)
ET-200	0.2	20,25 30,50 70,100 150,250	33*4	33*2	10±1	6.8±1	≥1200
ET-250	0.25		33*4	33*3	10±1	6.8±1	≥1200
ET-300	0.30		33*6	33*3	10±1	6.2±1	≥1500

*Special specification are available upon request.
*Fabric can be woven in satin structure
