Mica Tape for Cable

FOB Price

US$ 8.45 - 10.5 / Kilogram

100 Kilograms(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

mica tape for cable
1)MOQ:1OOKG
2)SUPPLY ability:10,000kg
3)High temperature and flame resistant
4)ISO9001:2000

mica tape for cable:

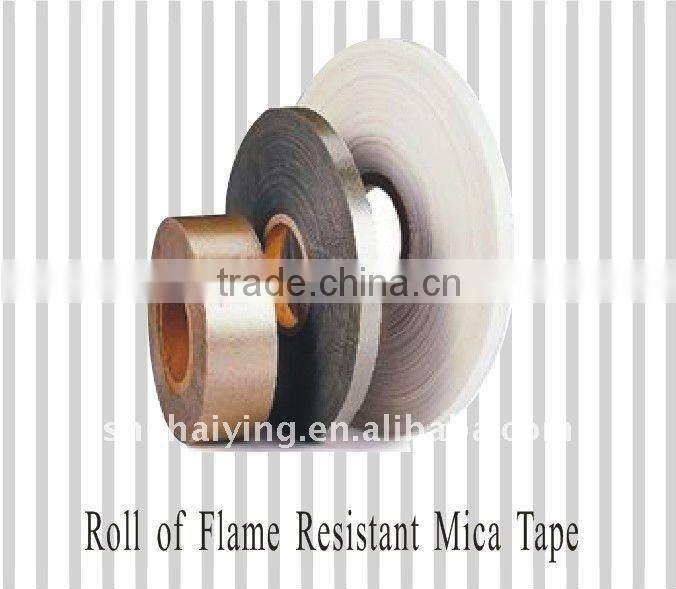

Mica paper tape for flame resistant security cable is a new mica insulation product. It possesses

excellent high temperature resistance and flame resistance. This mica tape has good flexibility at

normal temperature, can be used as the main flame resistant insulating layer of various flame

resistant cable. The silicone resin binder in this tape we select is outstangding and there's no harmful

smoke when it burns. Therefore, this mica tape for flame resistant cable is not only effective but also

secure.Orders from customers at home and abroad are welcome.

The specification of synthetic mica tape is as below:

Technical Conditions

Description		unit	Phlogopite Mica Tape HY450-5	Phlogopite Mica Tape HY460-5	Phlogopite Mica Tape HY460-5S	Synthetic Mica Tape HY460-6	Synthetic Mica Tape HY460-6S
Description		mm	0.14	0.11	0.14	0.11	0.14
Tolerance	Deviation of middle value	mm	±0.02	±0.02	±0.02	±0.02	±0.02
Tolerance	Deviation of individual value	mm	±0.03	±0.03	±0.03	±0.03	±0.03
Width		mm	8-400	8-400	8-400	8-880	8-880
Mica content		%	≥40	≥70	≥55	≥70	≥55
Binder content		%	15-35	5-15	5-15	5-15	5-15
Tensile strength		N/cm	≥60	≥60	≥80	≥60	≥80
Dielectric strength		MV/m	≥10	≥10	≥10	≥10	≥10
Flame resistance		Test Method Refer to GB19216-2003
Shelf Life		d	180	180	180	180	180
