Insulation Glass Fiber Net for Transformer Industrial

FOB Price

US$ 2.36 - 7.87 / Square Meter

1000 Square Meters(Min. Order)

Port FOB SHANGHAI
Payment TermsT/T D/P D/A

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shanghai, China	Brand Name	haiying
Model Number	52098	Application	for transformers banding
Surface Treatment	with resin	Dimensions	2.0.100050

Product Description

Specifications

1)Poliable and tacky
2)ISO9001-2000
3)High-tempratre;
4)Good insulation;

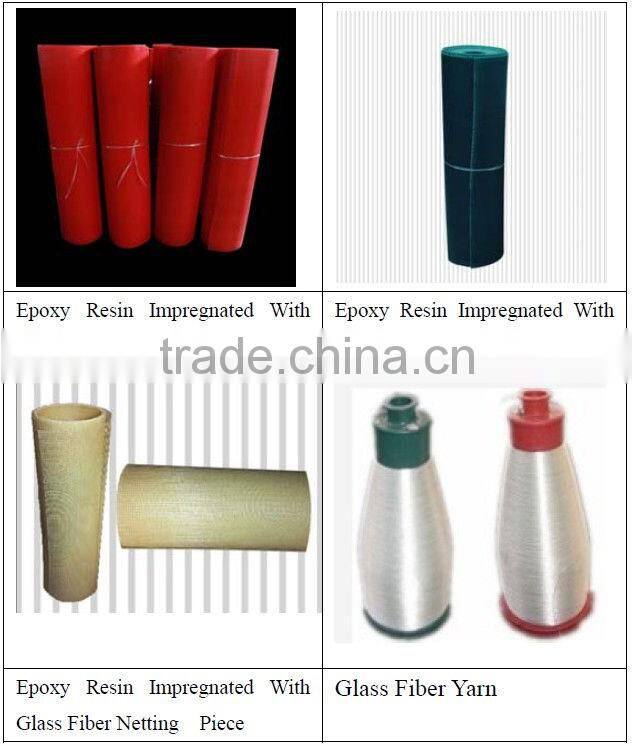

Glass Fiber Reinforcing Netting Piece ImpregnatedWith Resin For Transformer: Netting piece consists of high strength E-glass yarn without wax, which is woven by special technology. It has advantage of proportional spacing and fixing meshes. After coated with epoxy resin introduced from America, the product provides good hardness and toughness, being able to meet the requirement of the technology for reinforcing moulding shape of dry transformer. It is an excellent reinforcing material suitable for the production process of dry transformer.

Property:

Thermal class	—	F(155 °C)
Resin content	%	12-20
Rate of sorption	%	≤8
Tensile strength	N	≥4000(2.0mmThick)
Breakdown voltage(along the surface)	KV	≥18
Insulation resistance(along the surface)	Ω	≥1×10¹³

Style	Thickness ( mm)	Width ( mm)	Package ( M/roll)
50454	0.40±0.05	1000	100
50654	0.60±0.1	1000	100
51275	1.2±0.2	1200	50
51554	1.5±0.2	1000	50
51654	1.6±0.2	1000	50
51954	2.0±0.2	1000/1200	50
52098	2.0±0.2	1000/1200	50
52454	2.4±0.3	1000	40

Storage:

* Please put the product in the dry and ventilated place.

* Don't open up the package if you don't use it in time for avoiding soiled the product so as to
ensure the insulation.

* Old and new custoners are warmly welcome and orders according to the special requirements of
customers are also acceptable.
