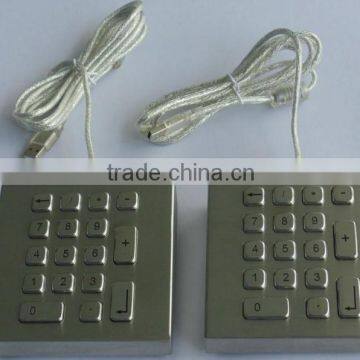

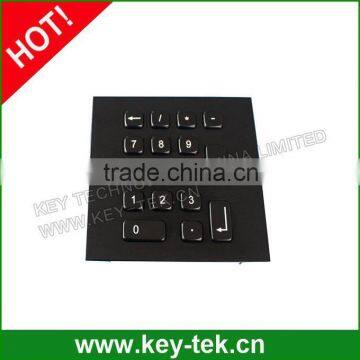

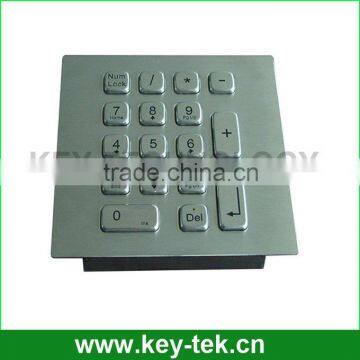

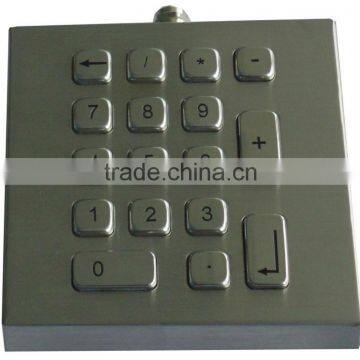

17 keys Vandalproof customized metal keypad with electronic controller

17 keys vandal-proof IP65  industrial keypad with carbon-on-gold key switch technology, laser engraved keys, with stands abuse solvents, with top panel mounting.

MAIN FEATURE

• Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
• Internet friendly key layout, key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off.
• With firm tactile key feel, full long carbon-on-gold key switchess, with unique double over-travel protection.
• Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof encapsulation with unique membrane.
• Easily mounting into enclosure or panel, connection output cables that plug directly into the host computer for normal keypad operations.
• OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac OSX

COMMUNICATION PARAMETER

• USB, PS2 or RS232 interface are available.
• 17 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, Numeric Lock , +, -, *, / , . , Enter, 4 x 5 scanning code. Any keys can be re-defined per customers' requirements.

MECHANICAL DATA

• Switch Contact Material: Carbon-on-Gold key switch technology with gold finish PCB.
• Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
• Key Travel: 2.0 mm
• Lettering: laser engraving, or raised letters.
• Front panel: brushed stainless steel
• Actuator/keys materials: stainless steel
• Dimensions: 118.0mm x 122.0mm
• G.W. 1.0KGs

ELECTRICAL DATA

• Power supply voltage: 5V DC.
• Power Consumption: Under 300mW for operation, under 200mW for non-operation
• Electrical lifetime: > 5 years
• EMC:EN55022(B)
• Communication interface:PS2, USB or RS232 are all available.

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-20°C to +60°C
• Storage temperature: -30°C to +70°C
• Operating RH: 30-90%
• Atmospheric pressure: 60-106Kpa.

RELIABILITY

• RoHS Compliant, CE and FCC
• Protection Level: IP65(front panel)
• Vandal resistant IK09
• Key Lifespan >10 million actuations
• MTBF >50,000H
• MTTR <30min
