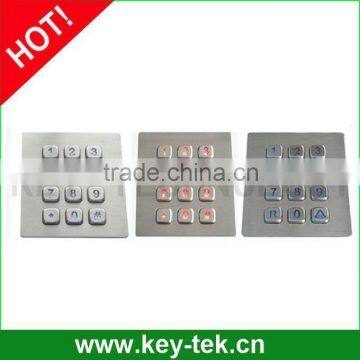

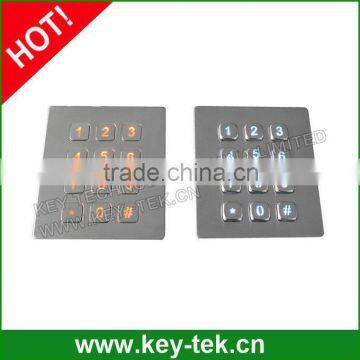

12 Keys Metal Numeric Vandal Proof Illuminated Keypad

12 keys metal numeric vandal proof illuminated keypad

Model NO: K-TEK-A88KP-BL

IP65 vandal proof 12 keys metal numeric keypad with backlight

Dimension: 88.0mm x 102.0mm (top panel)

Description:12 keys compact format IP65 dynamic vandal proof Stainless Steel industrial numeric keypad with industrial PCB electronics controller shieded & protected by stainless steel housing, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise,top stainless steel plate with sealing gasket for easy & tight sealing and mounting to enclosure or panel, with threaded bolts under top stainless steel plate for top panel mounting solution. Backlight included

MAIN FEATURE
Stainless steel fascia and key-tops guard willful destruction, against corrosion, shock, dust, falling raining, splashing, hose-directed water and vandal resistant, operation under hostile environments.
key-tops are sunk laser-etched in legends and characters via using high quality ink for easy readability, long life to prevent lettering rub-off.
With carbon-on-gold key contact with long stroke 2.0mm, with unique double over-travel protection.
Waterproof/dirt-proof execution according to degree of protection IP65, waterproof and dirt proof .
Easily mounting into enclosure or panel, and is provided with PS/2, or USB, RS232, connection output cables that plug directly into the host computer for normal keypad operations.
OS: All windows, Linux, Unix, Mac OSX

COMMUNICATION PARAMETER
USB, PS2 or RS232 are all available.
12 actuator on the keypad: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. Any keys can be re-defined per customers' requirements

MECHANICAL DATA
Switching material: Carbon-on-Gold.
Actuation Force: 0.6N +/-0.1N (pressure point).
Key Travel: 2.0mm.
Lettering: laser engraving, or raised letters.
Front panel: brushed stainless steel.
Actuator/keys materials: stainless steel.
Dimensions: 88.0mm x 102.0mm.
G.W. 0.9KGs.

ELECTRICAL DATA
Power supply voltage: 5V DC.
Power Consumption: Under 300mW for operation, under 200mW for non-operation.
EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004 EMI: EN 55022: 2010 EMS: EN 55024:2010 Electrical lifetime: > 5 years.
Communication interface: PS2, USB or RS232 are all available.

ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20°C to +60°C.
Storage temperature: -30°C to +70°C.
Operating RH: 30-90%.
Atmospheric pressure: 60-106Kpa.

RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant IK09
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
