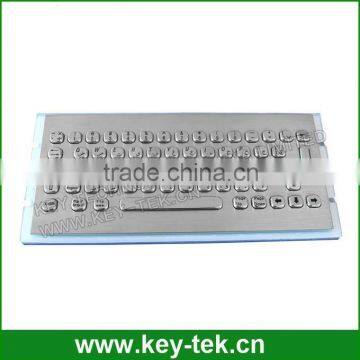

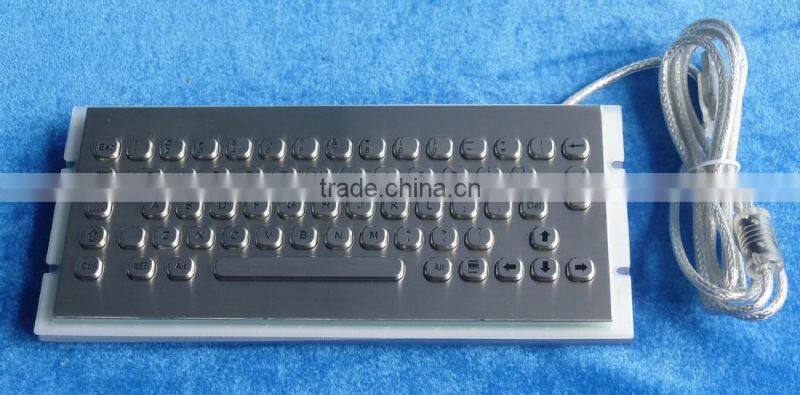

Industrial Metal Mini 2mm Long Stroke Keyboard

MECHANICAL DATA

Actuator/keys

64 keys,
2.0mm thickness super quality SUS304 brushed stainless steel
bulge keys.

Key top style

Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size

10.0mm x 10.0mm for normal keys, 14.0mm x 100.0mm for space bar.

Key travel

2.0mm

Switch life

more than 10 million of operations

Actuation Force

1.50N+/-0.1N for key 10.0mm x 10.0mm (pressure point)

Front Plate

1.5mm thickness super quality brushed stainless steel

Back Plate

3.0mm thickness brushed & oxidized aluminium

G.W.

1.00KGs

Dimensions

220.0mm x 101.0mm (front panel), 236.0mm x 109.0mm (back panel)

ELECTRICAL DATA

Supply Voltage

+5V DC +/-5%

Current Rating

appr. 20mA

EMC Standard:

It is compliance with the council IEC 61000-4-2:2008;
IEC 61000-4-3:2006+AI:2007+A2:2010;
IEC 61000-4-4:2004

EMI:

EN 55022: 2010

EMS:

EN 55024:2010

Lifespan

> 5 years

Switch Contact Material:

Carbon-on-Gold key switch technology PCB.

Interface:

PS2, USB available.

OS:

All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

Operating temperature

-20oC to +60oC

Storage temperature

-30oC to +70oC

Operating RH

30-90%

Atmospheric pressure

60-106Kpa

Saline mist

96 hours, IEC 60512-6

Damp heat test at + 40oC

21 days, IEC 60512-6

Dry heat test at + 85oC

10 days, IEC 60512-6

RELIABILITY

Certification

RoHS Compliant, CE and FCC, IP65, ESD

Protection Level

IP65(front panel)

Vandal resistant

IK09

Key Lifespan

>10 million actuations

MTBF

>50000H

MTTR

<30min
