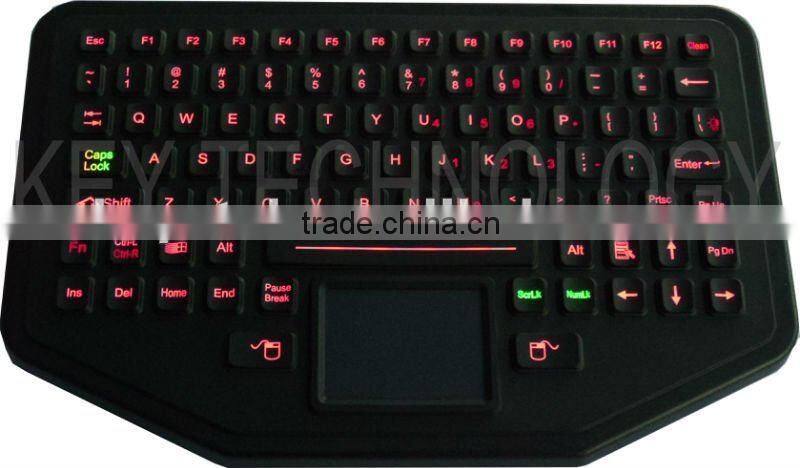

Silicone Rubber Keyboard With Touchpad,function Keys and Desktop

silicone rubber keyboard with touchpad,function keys and desktop

Model NO:K-TEK-M275TP-FN-DT

Dimension:304.40mm x 195.8mm x 47.3(22.3) mm (L x W x H)

Description:89 keys IP68 rated compact format ruggedized industrial silicone rubber keyboard with full keyboard functionalities with sealed & ruggedized tough touchpad, integrated numeric keypad & function keys, with carbon-on-gold key switch technology with stroke 1.50mm, tactile feedback, with durable coating & antimicrobial keyboard surface resistant to most chemicals and corrosive liquids, Clean key for easy cleaning, wall mounting desk top version with robust polycarbonate case, adjustable industrial backlight optional, wired and wireless optional.

APPLICATIONS:
This keyboard provides full-size versatility in a rugged, compact design with the added convenience of an integrated touchpad. For working in low-light areas, it is also available with optional LED backlighting. Engineered for NEMA 4X protection from dust, water and corrosive liquids. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its large numeric pad allows for easy data entry, while its robust polycarbonate case protects it against any hazardous environment.
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
MAIN FEATURES:
keyboard with NVIS-compliant red adjustable backlighting, while NVIS backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Clean key-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime-User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
Special durable-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.50mm key travel.
Integrated touchpad.

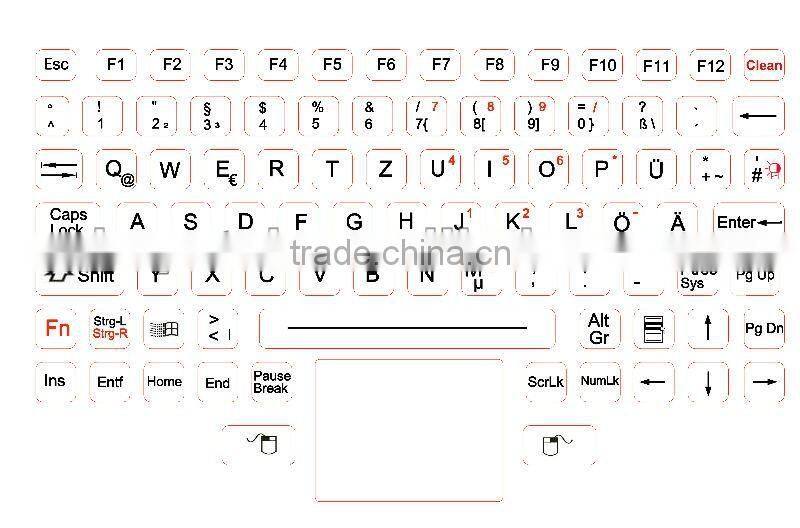

Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone, Robust ABS Polycarbonate Case
Low-profile keys for easy cleaning
Key life: 10 millions
MECHANICAL DATA

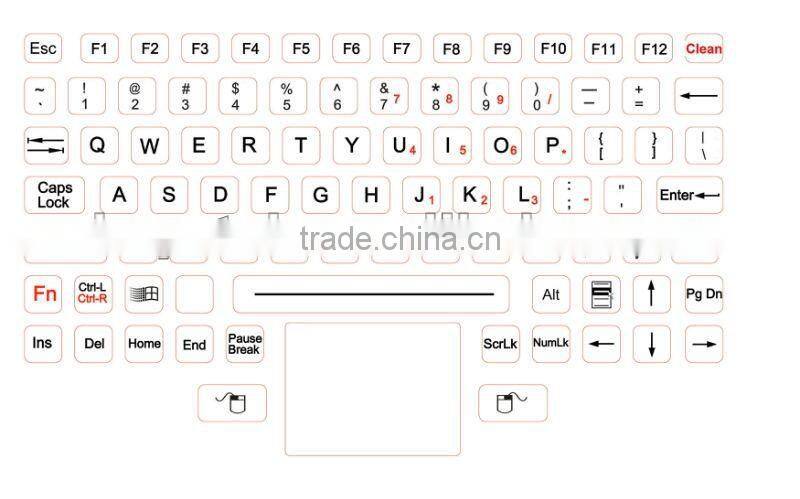

Key: 89 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 VDC ±0.25V
Current rating (active mode): 17 mA
Key Size: 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key.
Cable Length: 2.5m
G.W.: 1.00KGs

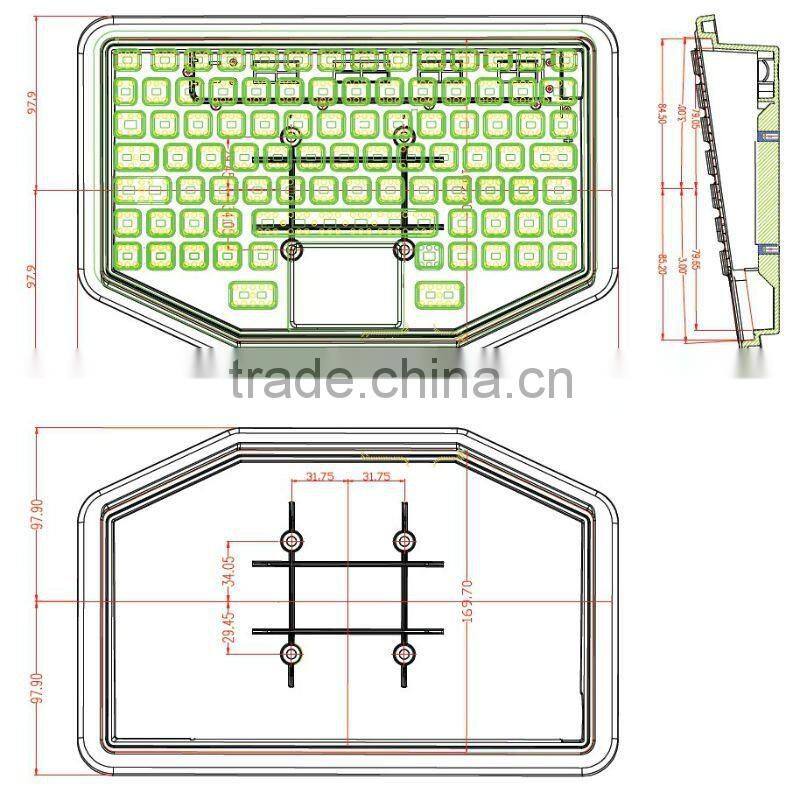

Dimensions: 304.40mm x 195.8mm x 47.3(22.3) mm (L x W x H)

ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 30mA (non-backlight), 150mA (with backlight on)
EMC Standard:
It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003
Emission: EN 50081-1
Immunity: EN 50082-1
Lifespan> 3 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC(Industrial level), -40oC to + 80oC(Military Level),
Storage temperature: :-30oC to +70oC (Industrial level), -40oC to + 80oC(Military Level),
Operating RH: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability
PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V

RELIABILITY
RoHS , CE, FCC, ESD
Protection Level: IP68, NEMA 6P
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
