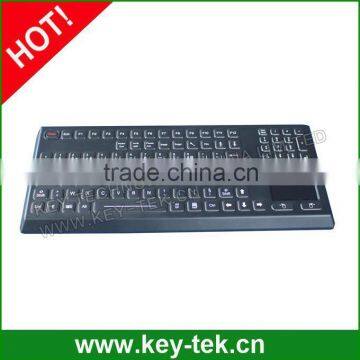

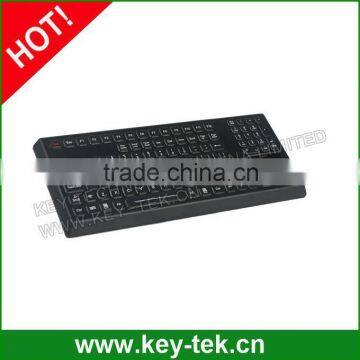

IP68 Keyboard With Touchpad for Heavy Application, LED Backlight Optional

IP68 keyboard with touchpad for heavy application, LED backlight optional

K-TEK-M390TP-KP-FN-DT

Dimension:390.0mm x 154.0mm x 19.0mm (L x W x H)

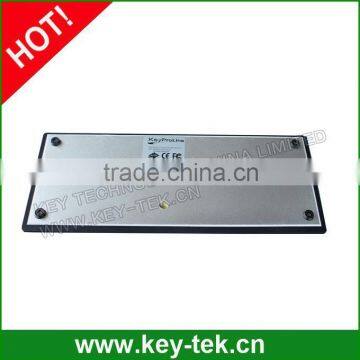

Description:108 keys IP68 rated ruggedized industrial silicone rubber keyboard with full keyboard functionalities with sealed & ruggedized tough touchpad, integrated numeric keypad & function keys, with carbon-on-gold key switch technology with stroke 1.50mm, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, Clean key for easy cleaning, stand alone desk top version with sealed 5.0mm aluminum back plate with sand blasting & oxygenation surface treatment, adjustable industrial backlight optional.

APPLICATIONS:
This keyboard provides full-size versatility in a rugged, compact design with the added convenience of an integrated touchpad. For working in low-light areas, it is also available with optional LED backlighting. Engineered for NEMA 4X protection from dust, water and corrosive liquids. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
OTHER INDUSTRIES

MAIN FEATURES:

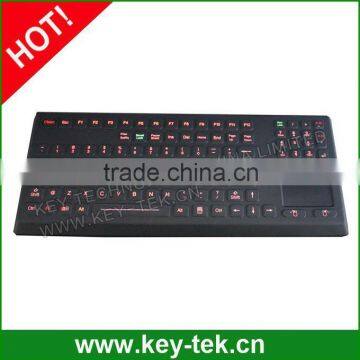

keyboard with NVIS-compliant red adjustable backlighting optional, while NVIS backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Clean key-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime-User is notified of ‘lock down mode’ by brightly lit

CLEAN KEY
Special durable-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.50mm key travel.
Integrated touchpad.
Integrated numeric keypad.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone, Aluminum (rear side).
Low-profile keys for easy cleaning
Key life: 10 millions

MECHANICAL DATA:
Key: 108 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Touchpad cover: Composite
More than Lifetime 10 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 VDC ±0.25V
Current rating (active mode): 17 mA
Key Size: 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key.
Switch life: more than 10 million of operations.
Cable Length: 2.5m
G.W.: 1.50KGs
Dimensions:390.0mm x 154.0mm x 19.0mm (L x W x H)

ELECTRICAL DATA:
Supply Voltage: +5V DC +/-5%
Current Rating: 30mA (non-backlight) , 150mA (with backlight on)
EMC Standard: It is compliance with the council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003 EN55024: 1988+A1: 2001+A2:2003
Emission: EN 50081-1
Immunity: EN 50082-1
Lifespan> 3 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY:
Operating temperature:-20oC to +60oC
Storage temperature: :-30oC to +70oC
Humidity: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability
PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V

RELIABILITY:
RoHS , CE, FCC, ESD
Protection Level: IP68, NEMA 6P
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
