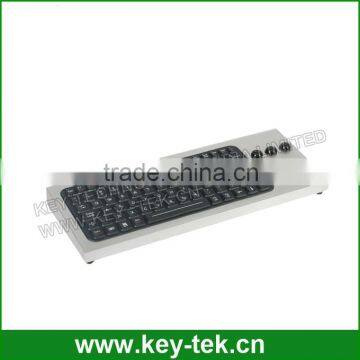

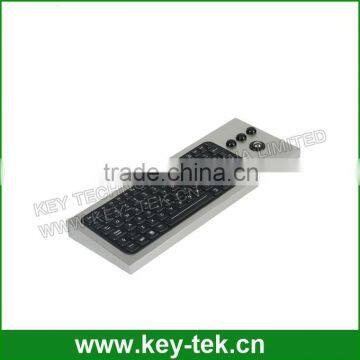

IP68 waterproof backlight movable silicone trackball keyboard

IP68 waterproof backlight movable silicone trackball keyboard

IP68 dynamic sealed & ruggedized industrial medical silicone rubber industrial keyboard with full keyboard functionalities , IP68 dynamic rated 12mm optical trackball module with 400 DPI resolutions, function keys and carbon-on-gold key switch technology with stroke 1.50mm, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, Clean key for easy
cleaning, mountable desk top version with robust polycarbonate case, adjustable industrial backlight optional.

 APPLICATIONS:

MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic
equipments, operation rooms, dialysis centers etc;

MATERIAL HANDLING: mobile keyboard, data
entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation,

pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing
environments, warehouses

 MAIN FEATURES:

keyboard
has NVIS-compliant red adjustable backlighting, while NVIS backlighting makes
this keyboard ideal for aviation
or vehicle applications where night vision goggles are necessary.
The trackball pointing device is a
completely sealed 38-mm laser unit, featuring a removable ball for convenient cleaning, as well as an adjustable
tension ring. The trackball is operated using sealed switches with left and
right click functions.
Keyboard provides full-size versatility
in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found
between the keys of a regular keyboard, which is protected against dust, dirt,
grease and corrosive liquids to NEMA 4X, which means it can withstand directed
hose water, disinfectants, environmental contaminants and heavy industrial use.

Special dura-coating for excellent mechanical and chemical resistance

With firm tactile key feel, key travel 1.2mm.
Optical IP68 mouse available
Ease of customizing with multiple
languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug
directly into computer like keyboard operations.
Enclosure: industrial silicone, Aluminum
(rear side)

MECHANICAL DATA

Key: 86keys
Key top style: Protuberant rectangular
keys with tactile feeling.
Key Size: 12.0mm x 13.0mm for normal
keys, 23.4.0mm x 13.0mm for enter key and space bar key.
Switch life: more than 10 million of
operations.
Tracker ball: 12mm.
Actuation Force: 0.8 N+/-0.1N for normal
key with 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for

key 23.4.0mm x 13.0mm (pressure point)
Cable Length: 2.5m
G.W.: 1.3KGs
Dimensions: 368.0mm x 142.90mm x 31.0mm
(L x W x H)

ELECTRICAL DATA

Supply
Voltage: +5V DC +/-5%
Current Rating: appr. 20mA
EMC Standard: It is compliance with the
council EMC directive 89/336/EEC EN55022: 1988+A1:2000+A2:2003

EN55024: 1988+A1: 2001+A2:2003
Emission: EN 50081-1
Immunity: EN 50082-1
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold
key switch technology with gold PCB.
Interface: PS2, USB available.
OS:
DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/Win7, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-30oC
to +55oC
Storage temperature: :-40oC to +65oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa
Saline mist: 96 hours, IEC 60512-6
Damp heat test at +40oC: 21 days, IEC
60512-6
Dry heat test at +85oC: 10 days, IEC
60512-6

RELIABILITY

RoHS Compliant, CE and FCC,
ESD
Protection Level: IP68, NEMA 6P
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
