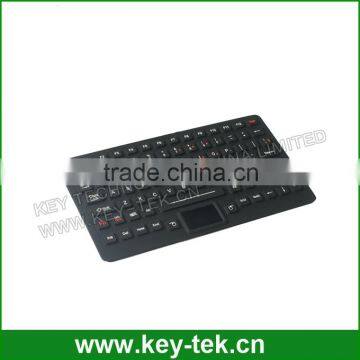

89 Keys IP65 Dynamic Sealed and Ruggedized Silicone Rubber Military Keyboard With Full Keyboard Functionalities

89 keys IP65 dynamic sealed and ruggedized silicone rubber military keyboard with full keyboard functionalities with sealed & ruggedized tough touchpad for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, with military PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC, gold finnish PCB sealed and ruggedized with top rubber for top panel mounting, military level with adjustable backlight included. With optional stainless steel back plate sealed and ruggedized with top silicone cover & gold finnish PCB for ruggedized structure and easy mounting and sealing, stainless steel housing protects the electronics controller.

APPLICATIONS:

This keyboard provides full-size versatility in a rugged, compact design with the embeded convenience of an integrated numeric keypad. For working in low-light areas, it is also available with optional LED backlighting. Engineered for NEMA 4X protection from dust, water and corrosive liquids. This keyboard is ideal for use in environments ranging from manufacturing to material handling to medical settings. Its numeric pad allows for easy data entry.
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
OTHER INDUSTRIES

MAIN FEATURE:

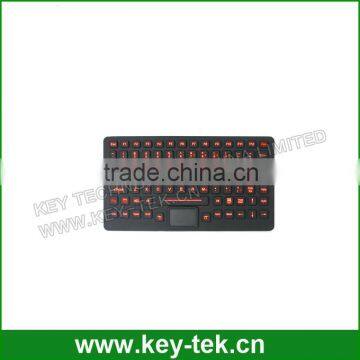

keyboard with NVIS-compliant red adjustable backlighting optional, while NVIS backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use. Special durable-coating for excellent mechanical and chemical resistance Clean key -Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime -User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
With firm tactile key feel, key travel 1.5mm key travel.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone,stand alone back panel optional.

MECHANICAL DATA:

Key: 89 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Key Size: 12.0mm X 13.0mm for normal keys, 22.5mm x 13.0mm for enter key and 82.0mm x 12.5mm for space bar key.
Switch life: more than 10 million of operations.
Cable Length: 2.5m
G.W.: 0.80KGs
Dimensions:  281.40mm x 153.00mm (top panel)  (L x W )

ELECTRICAL DATA:

Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard:  It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB, RS232, RS485 available
OS: All Windows, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC(industrial level) ; -40oC to +85oC(military level)
Storage temperature: :-30oC to +70oC (industrial level); -55oC to +150oC(military level)
Humidity: 100%
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability
PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V

RELIABILITY:

RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Key Lifespan >10 million actuations
MTBF >50000H
MTTR <30min
