Home > Products > Industrial Pointing Devices > 38mm Stainless Steel Waterproof Indsutrial Metal Trackball
38mm Stainless Steel Waterproof Indsutrial Metal Trackball
- SHEN ZHEN AND HK
- T/T Credit Card
You May Like
-
38mm Optical Stainless Steel Waterproof Industrial Metal Trackball
-
38mm Vandal Proof Waterproof Stainless Steel Trackball
-
IP65 Static Rated Vandal Proof 38mm Chameleon Trackball
-
IP65 Dynamic Industrial Trackball Vandal Proof With Washable Trackball Mouse
-
2016 New IP68 Dynamic Washable Stainless Steel Optical Mouse Trackball
-
Electroplated Black IP65 Static Stainless Steel Trackball Mouse
Product Details
| Products Status | Stock | Application | Desktop, Other | |
| Type | Wired | Interface Type | Other, USB PS2 | |
| DPI | 1200 | Tracking Method | Laser | |
| Style | Waterproof, Other | Hand Orientation | Both Hands | |
| Brand Name | IKB-MKB | Model Number | K-TEK-B107-38-LTB | |
| Place of Origin | Guangdong, China |
Product Description

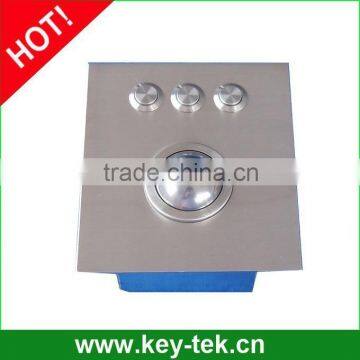

38mm stainless steel waterproof indsutrial metal trackball
Model NO:K-TEK-B107-38-LTB
Dimension:107.0mm x 120.0mm (top panel)
Description:IP65 dynamic rated vandal proof stainless steel laser trackball with IP65 dynamic sealed & ruggedized stainless mouse buttons and IP68 dynamic rated washable 38.0mm stainless steel laser trackball module with +1200 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, optical trackball module protected and shielded by stainless steel housing, 3 sealed stainless steel mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, stainless steel top plate with threaded bolts for top panel mounting solution.
MAIN FEATURE
Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
Laser Encoders provide high resolution more than 1200DPI, fast and reliable positioning data.
Available 38mm diameter Stainless steel for smooth, quick and durable operation and precise cursor positioning.
Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
can be mounted horizontally, and vertically.
no metal bearings inside, operation is very smooth, and easy without any noise.
TECHNICAL SPECIFICATION
ITEM | SPECIFICATION | |
Mechanical | Key | 2 or 3 keys, quality brushed stainless steel |
Key top style | sealed round stainless steel buttons with tactile feeling | |
Front Plate | Quality brushed stainless steel | |
Key Travel | 1.00 mm | |
Ball diameter | 38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available) | |
Key switch lifespan | more than 10 Mio actuations | |
Track ball lifespan | > 10 Mio revolutions | |
Back Metal Cover | Rear side integrated electronics protected by a metal cover | |
Actuation Force | 1.0N to 3.0 | |
Mounting Rack | top stainless steel plate with mounting screw bolts | |
Dimension | Dimensions with 38mm track ball, Front plate (W x H): 107.0mm x 120.0mm | |
Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
Electrical | Power supply | 5V DC+ 10%, mouse interface |
Protection level | IP65 dynamic (front panel), NEMA3, IK10 | |
EMC Standard | EN55022(B) | |
Power consuming | ≤1.00W(dynamic) | |
≤0.2W(static) | ||
Contact Material | sealed stainless steel buttons | |
Environmental | Operating temperature | -20ºC~+ 60º C |
Storage temperature | - 30ºC~+ 70ºC | |
Operating RH | 30~90% | |
Atmospheric pressure | 60~106Kpa. | |
Reliable | Certificates | RoHS compliant, CE and FCC certified. ESD |
MTBF | >50000H | |
MTTR | < 30min | |
OS | OS is under All windows, Linux, Unix, Mac OS9 / OSX | |
Packing Details | Each unit to a suitable brown box, suitable brown boxes to a standard export carton. | |
ITEM | SPECIFICATION | |
Mechanical | Key | 2 or 3 keys, quality brushed stainless steel |
Key top style | sealed round stainless steel buttons with tactile feeling | |
Front Plate | Quality brushed stainless steel | |
Key Travel | 1.00 mm | |
Ball diameter | 38.1mm/1.50" (19mm, 25mm, 36mm 40mm also available) | |
Key switch lifespan | more than 10 Mio actuations | |
Track ball lifespan | > 10 Mio revolutions | |
Back Metal Cover | Rear side integrated electronics protected by a metal cover | |
Actuation Force | 1.0N to 3.0 | |
Mounting Rack | top stainless steel plate with mounting screw bolts | |
Dimension | Dimensions with 38mm track ball, Front plate (W x H): 107.0mm x 120.0mm | |
Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
Electrical | Power supply | 5V DC+ 10%, mouse interface |
Protection level | IP65 dynamic (front panel), NEMA3, IK10 | |
EMC Standard | EN55022(B) | |
Power consuming | ≤1.00W(dynamic) | |
≤0.2W(static) | ||
Contact Material | sealed stainless steel buttons | |
Environmental | Operating temperature | -20ºC~+ 60º C |
Storage temperature | - 30ºC~+ 70ºC | |
Operating RH | 30~90% | |
Atmospheric pressure | 60~106Kpa. | |
Reliable | Certificates | RoHS compliant, CE and FCC certified. ESD |
MTBF | >50000H | |
MTTR | < 30min | |
OS | OS is under All windows, Linux, Unix, Mac OS9 / OSX | |
Packing Details | Each unit to a suitable brown box, suitable brown boxes to a standard export carton. | |
