Home > Products > Server Fiber NIC Cards > Intel XL710 Chipset QSFP+ Fiber 40 Gigabit Ethernet PCI Express Server Adapter

Intel XL710 Chipset QSFP+ Fiber 40 Gigabit Ethernet PCI Express Server Adapter

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port Shenzhen
Payment TermsCredit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Products Status	Stock	Application	Server
Type	Wired	Kind	Internal
Transmission Rate	10Gbps	Interface Type	PCI Express
Certification	CE,FCC,ROHS,ISO9001:2008	Brand Name	LR-LINK/OEM
Model Number	LREC9901-QSFP+	Place of Origin	Guangdong, China

Product Description

Intel XL710 Chipset QSFP+ Fiber 40 Gigabit Ethernet PCI Express Server Adapter

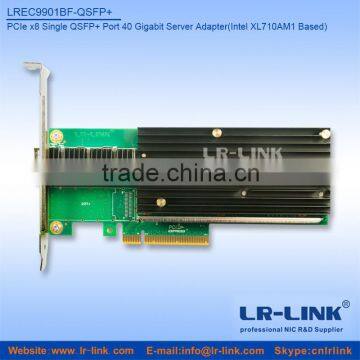

Detailed Images

Product Description

LREC9901BF-QSFP+'s 40 Gigabit Ethernet PCI Express server adapters are designed for Servers and high-end appliances. The Silicom 40 Gigabit Ethernet PCI Express Server adapters offer simple integration into any PCI Express X8 to 40Gigabit Networks. The performance is optimized so that system I/O is not the bottleneck in high-performance networking applications. The Silicom 40 Gigabit Ethernet PCI Express server adapters are based on Intel XL710AM1 Ethernet controller with two fully integrated Gigabit Ethernet Media Access Control (MAC) and XLPPI Interface. In addition to managing MAC and PHY Ethernet layer functions, the controller manages PCI Express packet traffic across its transaction, link, and physical/logical layers. Using hardware acceleration, the controller offloads tasks from the host, such as TCP/UDP/IP checksum calculations and TCP segmentation. Silicom’s 40 Gigabit Ethernet PCI-Express Server adapters are the ideal solution for implementing multiple network segments, mission-critical high-powered networking applications and environments within high performance servers.

Features:

Performance Features:

• Support for jumbo frame up to 9.5KB

• Flow control support

• Priority Flow Control (draft IEEE 802.1Qbb)

• Enhanced Transmission Selection (draft IEEE802.1az)

• Statistics management and RMON

• 802.1q VLAN support

• DCB/DCB-X support

• Message Signal interrupts (MSI-X)

Storage - Enabling competitive performance with native OS intelligent offload solutions, including NAS,

iSCSI and FCoE

Host Interface:

• PCI Express X8 lanes

• Support PCI Express Base Specification 3.0 (8GT/sec)

LAN and Virtualization Features:

Network Virtualization offloads for VXLAN and NVGRE

Unified Networking Providing a single wire for LAN and storage: NAS (SMB, NFS) and SAN (iSCSI,

FCoE)

Virtual Bridging Support – VEPA/802.1Qbg, BPE/802.1Qbh

Physical Functions – Up to 8 per port, up to 16 per device

Support for 128 Virtual Device Queues (VMDq) per port

Hardware Queue Pairs – Up to 1.5K (non-RDMA); up to 256K (RDMA)

Virtualization - Alleviating hypervisor I/O bottlenecks by providing flow separation for Virtual Machines

(VMs)

TCP/IP/L2 features:

• Receive Side Scaling (RSS)

• Large Send Offload (LSO)

• TCP/UDP/IP/SCTP Checksum Offload

• IPV4, IPV6

Specifications

General Technical Specifications
Interface Standard:	PCI-Express Base Specification Revision 3.0 (8 GT/sec)
Board Size:	167.6mm X 64.38mm(6.600" X 2.535") PCB thickness is 0.062 inch
PCI Express Card Type:	X8 Lane
PCI Express Voltage	+12V +- 8%
PCI Connector:	X8 Lane
Controller:	Intel XL710AM1
Holder:	Metal Bracket
Weight:	130gr (4.568 oz)
Power Consumption –QX4:	3.600W
Power Consumption –QS43:	4.680W
Power Consumption –QL4:	6.600W
Operating Humidity:	0%–90%, non-condensing
Operating Temperature:	0°C – 45°C (32°F – 113°F)
Storage:	-40°C–65°C (-40°F–149°F)
