Lowest Price Broadcom 5708 PCIe x4 Optical Fiber Gigabit Card For Server Supports TOE

Specifications

LREC9710PF-LX

Lowest Price Broadcom 5708 PCIe x4 Optical Fiber Gigabit Card For Server Supports TOE

Product Standard Features:

*  Performance Gigabit Ethernet Throughput

*  TCP/IP Offloading

*  Accelerated iSCSI

*  Load Balancing

*  Checksum and Segmentation Offloads, and Interrupt Coalescing

*  Scalability and Reliability

*  Management Support

*  Supports SNMP.

*  Configuration Utilities

*  LED Indicator

Nice Product Picture Showing:

Overview:

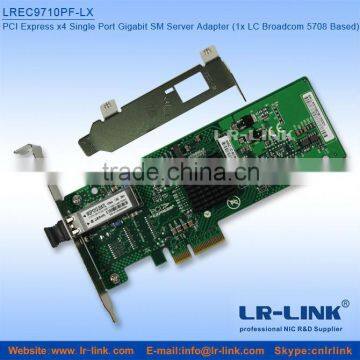

The LR-LINK LREC9710PF-LX is a high performance PCI Express multifunction network adapter for either standard or low profile slots in ProLiant servers running over a fiber-optic network environment.

In addition to delivering Gigabit Ethernet networking, the LREC9710PF-LX supports TOE (TCP/IP Offload Engine) for Windows only, Internet Small Computer System Interface (iSCSI).

Technical Specifications:

Compliance

IEEE 802.3z, 802.3x, Dynamic 802.3ad, 802.3p, 802.1Q

PCI Express ver 1.0a

General Specifications:

Main chip:                        Broadcom 5708C Optical Fiber Gigabit Card

On-board memory:          92KB

Data rate:                        1000 Mbps, Half- and full-duplex

Data path:                        Four  lane  (x4)  PCI Express compatible  with x1, x4, x8, and x16 PCI Express slots

Interrupt levels:                INTA

Connector:                       LC low profile

Distance and cabling:      Up to 1,804 ft/550 m with multimode fiber (50µm/125µm)

Up to 722 ft/220 m with multimode fiber (62.5µm/125µm)

Power and Environmental Specifications:

Operating Temperature:               32° to 131° F (0° to 55° C)

Operating Humidity:                     10% to 90% non-condensing

Non-operating Temperature:        -40° to 185° F (-40°  to 85° C)

Non-operating Humidity   :            5% to 95% non-condensing

Packaging:

LREC9710PF-LX PCI Express Multifunction Gigabit Server Adapter in an anti-static bag

Low profile bracket

Quick install card

Product warranty statement
